MPC5643LF2MMM1R - NXP

MPC5643LF2MMM1R Details

• Manufacturer Part Number:

  MPC5643LF2MMM1R

• Part Life Cycle Code:

  Active Unconfirmed

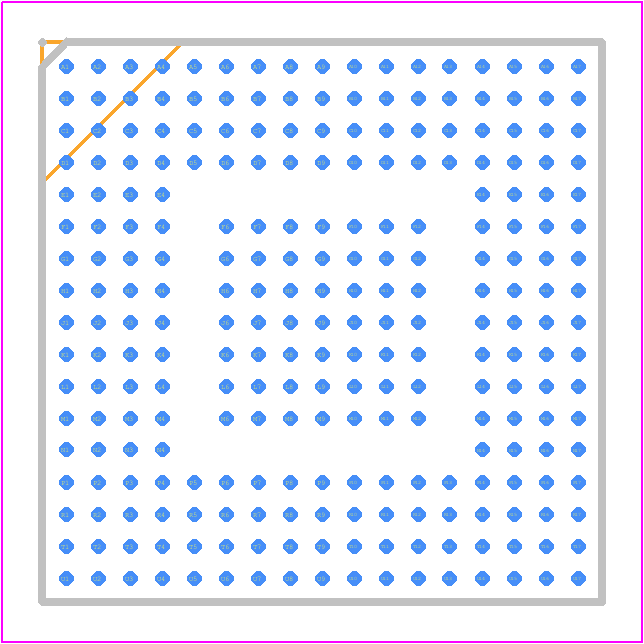

• Package Description:

  MABGA-257

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  8

• Has ADC:

  YES

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  E200

• Clock Frequency-Max:

  40 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B257

• Length:

  14 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  16

• Number of External Interrupts:

  32

• Number of I/O Lines:

  16

• Number of Serial I/Os:

  4

• Number of Terminals:

  257

• Number of Timers:

  26

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA257,17X17,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• RAM (bytes):

  131072

• ROM (words):

  1048576

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.51 mm

• Speed:

  120 MHz

• Supply Current-Max:

  318 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
