MPC9447AC - Renesas Electronics

Description: MPC9447 is specifically designed to distribute LVCMOS compatible clock signals up to a frequency of 350 MHz. Each output provides a precise copy of the input signal with a near zero skew. The outputs buffers support driving of 50 ? terminated transmission lines on the incident edge. Each is capable of driving either one parallel terminated or two series terminated transmission lines. Two selectable independent LVCMOS compatible clock inputs are available, providing support of redundant clock source systems.

Download MPC9447AC Model

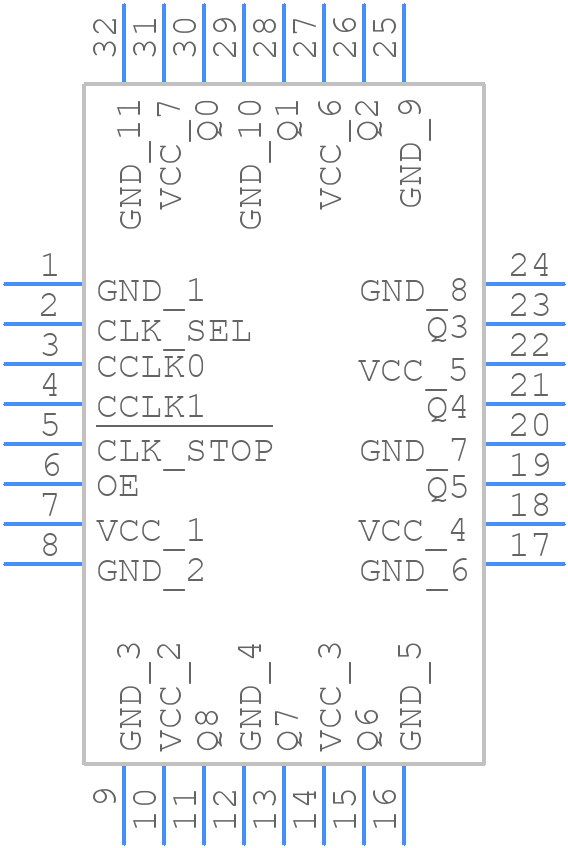

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MPC9447AC - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-LEAD LQFP
click to zoom
3D Models
MPC9447AC - Renesas Electronics  - 3D model - Quad Flat Packages - 32-LEAD LQFP
click to zoom

MPC9447AC Details

  • Manufacturer Part Number:

    MPC9447AC

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Package Description:

    LQFP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    PRG32

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES AT 3.3V SUPPLY

  • Family:

    9447

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    4.4 ns

  • Propagation Delay (tpd):

    4.4 ns

  • Same Edge Skew-Max (tskwd):

    0.15 ns

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • fmax-Min:

    350 MHz
