MPC962305EF-1H - Renesas Electronics

Description: The MPC962309 has two banks of four outputs each, which can be controlled by the Select Inputs as shown in Table 3. Bank B can be tri-stated if all of the outputs are not required. Select inputs also allow the input clock to be directly applied to the outputs for chip and system testing purposes. The MPC962305 and MPC962309 PLLs enters a power down state when there are no rising edges on the REF input. During this state, all of the outputs are in tristate, the PLL is turned off, and there is less than 25.0

Download MPC962305EF-1H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

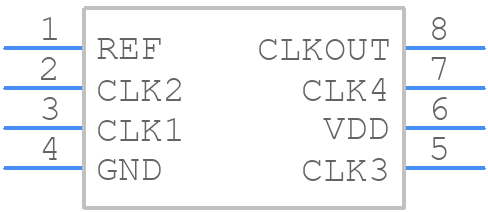

MPC962305EF-1H - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
MPC962305EF-1H - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - DCG8__2021
click to zoom
3D Models
MPC962305EF-1H - Renesas Electronics - 3D model - Small Outline Packages - DCG8__2021
click to zoom

MPC962305EF-1H Details

  • Manufacturer Part Number:

    MPC962305EF-1H

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    962305

  • Input Conditioning:

    MUX

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    35 mA

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • fmax-Min:

    133.33 MHz

MPC962305EF-1H Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout and thermal management guide in their application notes (e.g., AN9793) and design guides (e.g., DG-00245). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The MPC962305EF-1H requires a well-regulated power supply with low noise and ripple. Renesas recommends using a high-quality voltage regulator module (VRM) and following their power supply design guidelines (e.g., AN9792) to ensure stable operation.
  • The MPC962305EF-1H's high-speed interfaces (e.g., PCIe, SATA) require careful signal integrity design to minimize signal degradation and ensure reliable data transfer. Renesas provides guidelines for signal integrity design in their application notes (e.g., AN9794) and design guides (e.g., DG-00246).
  • Renesas provides firmware update tools and secure boot mechanisms through their software development kits (SDKs) and documentation (e.g., RM-00123). It's essential to follow their guidelines to ensure secure and reliable firmware updates.
  • The MPC962305EF-1H has a maximum junction temperature of 125°C. Renesas recommends using thermal design guidelines (e.g., AN9795) and thermal simulation tools to ensure the device operates within its thermal specifications, even in high-temperature environments.
