MPF050T-FCVG484I - Microchip

Description: Field Programmable Gate Array (FPGA) IC 176 3774874 484-BFBGA,0.97V ~ 1.08V,-40°C ~ 100°C (TJ)

Download MPF050T-FCVG484I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPF050T-FCVG484I - Microchip - PCB symbol
click to zoom
PCB Footprints

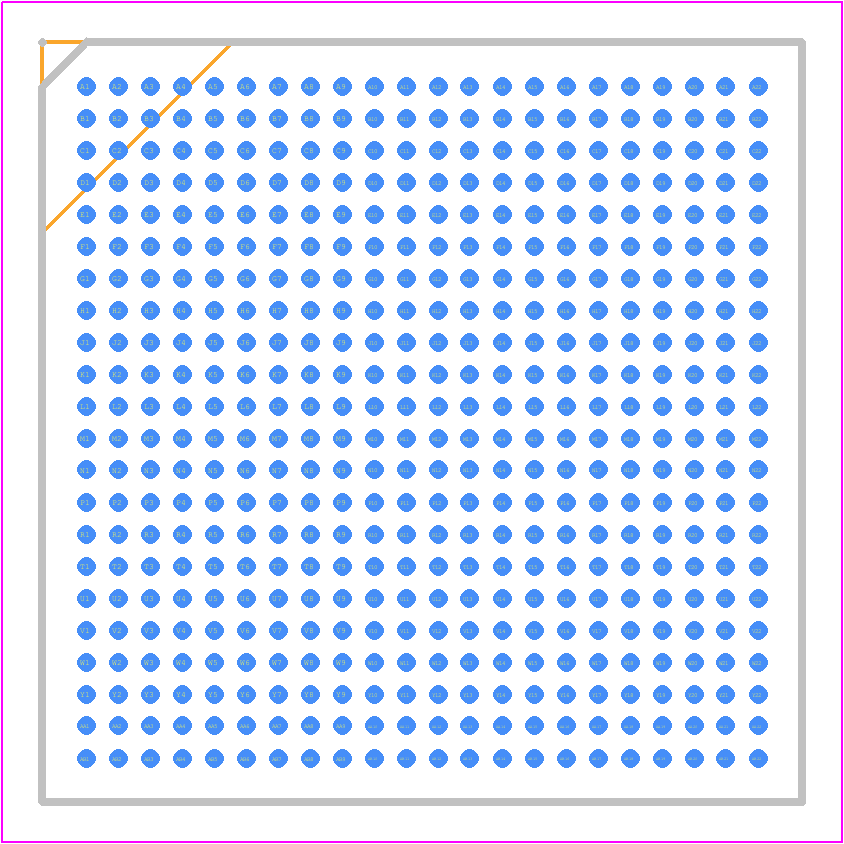

MPF050T-FCVG484I - Microchip PCB footprint - BGA - BGA - FCVG484_2025
click to zoom
3D Models
MPF050T-FCVG484I - Microchip - 3D model - BGA - FCVG484_2025
click to zoom

MPF050T-FCVG484I Details

  • Manufacturer Part Number:

    MPF050T-FCVG484I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-484

  • Pin Count:

    484

  • Manufacturer Package Code:

    BGA-484

  • Country Of Origin:

    South Korea

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Additional Feature:

    IT ALSO OPERATES AT 1.05 NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B484

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Number of Inputs:

    176

  • Number of Logic Cells:

    48000

  • Number of Outputs:

    176

  • Number of Terminals:

    484

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA484,22X22,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    3.32 mm

  • Supply Voltage-Max:

    1.03 V

  • Supply Voltage-Min:

    0.97 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

MPF050T-FCVG484I Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout guide in their application note AN1205, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • The power-up sequence should follow the recommended sequence in the datasheet, with the core voltage (VCC) powered up first, followed by the input/output voltage (VIO), and then the clock signal. This ensures proper device initialization and prevents latch-up or other issues.
  • The MPF050T-FCVG484I is rated for operation from -40°C to +125°C, but it's essential to consider the specific use case and potential thermal gradients on the PCB to ensure reliable operation within the specified temperature range.
  • Microchip recommends following the ESD protection guidelines in their application note AN141, which includes information on handling, storage, and PCB design considerations to prevent electrostatic discharge damage.
  • Microchip recommends using decoupling capacitors with values between 0.01 μF and 0.1 μF, placed as close as possible to the power pins of the device. The exact values and placement will depend on the specific application and PCB layout.
