MPF050TL-FCSG325E - Microchip

Description: Field Programmable Gate Array (FPGA) IC 164 3774874 325-TFBGA

Download MPF050TL-FCSG325E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPF050TL-FCSG325E - Microchip - PCB symbol
click to zoom
PCB Footprints

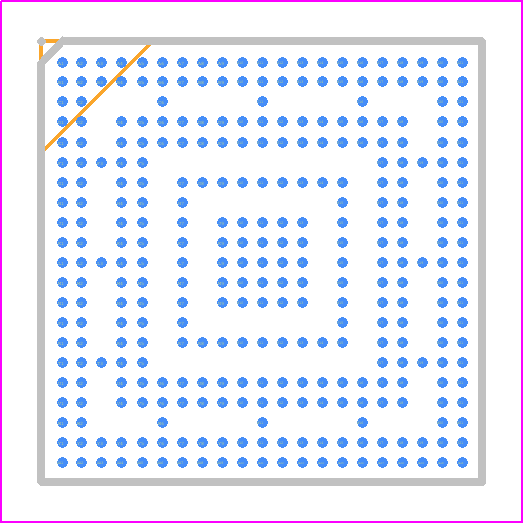

MPF050TL-FCSG325E - Microchip PCB footprint - BGA - BGA - 325-BALL BGA
click to zoom
3D Models
MPF050TL-FCSG325E - Microchip - 3D model - BGA - 325-BALL BGA
click to zoom

MPF050TL-FCSG325E Details

  • Manufacturer Part Number:

    MPF050TL-FCSG325E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-325

  • Pin Count:

    325

  • Manufacturer Package Code:

    TFBGA-325

  • Country Of Origin:

    South Korea

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Additional Feature:

    IT ALSO OPERATES AT 1.05 NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B325

  • JESD-609 Code:

    e1

  • Length:

    11 mm

  • Number of Inputs:

    164

  • Number of Logic Cells:

    48000

  • Number of Outputs:

    164

  • Number of Terminals:

    325

  • Operating Temperature-Max:

    100 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA325,21X21,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max:

    1.03 V

  • Supply Voltage-Min:

    0.97 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

MPF050TL-FCSG325E Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the device's datasheet and application notes. It's essential to follow these guidelines to ensure optimal thermal performance, especially for high-power applications. Key considerations include thermal vias, copper pours, and component placement.
  • When selecting an inductor for the MPF050TL-FCSG325E, consider the inductor's saturation current, DC resistance, and self-resonant frequency. Microchip provides inductor selection guidelines in the device's datasheet and application notes. Additionally, you can use online inductor selection tools or consult with a qualified engineer.
  • The MPF050TL-FCSG325E is rated for operation up to 125°C (TJ). However, the maximum ambient temperature for reliable operation depends on the specific application, PCB design, and thermal management. As a general rule, it's recommended to derate the device's power dissipation and operating temperature to ensure reliable operation.
  • The MPF050TL-FCSG325E has a built-in overcurrent protection (OCP) feature. To implement OCP, connect the OCP pin to a resistor divider network that sets the OCP threshold. You can also use an external OCP circuit or a dedicated OCP IC for more advanced protection schemes.
  • Microchip recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7 μF and 10 μF for the input capacitor. The specific value depends on the input voltage, output voltage, and switching frequency. Consult the datasheet and application notes for more detailed guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPF050TL-FCSG325E Overview

Use the download button to access the MPF050TL-FCSG325E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPF05, or try a keyword search, such as Field Programmable Gate Arrays
