MPF5024AMBA0ESR2 - NXP

Description: POWER MANAGEMENT IC, PRE-PROG, 4 STEP-DOWN DC/DC, ASIL-B SAFETY, REEL 13" Q2 DP, TR ROHS COMPLIANT: YES

Download MPF5024AMBA0ESR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

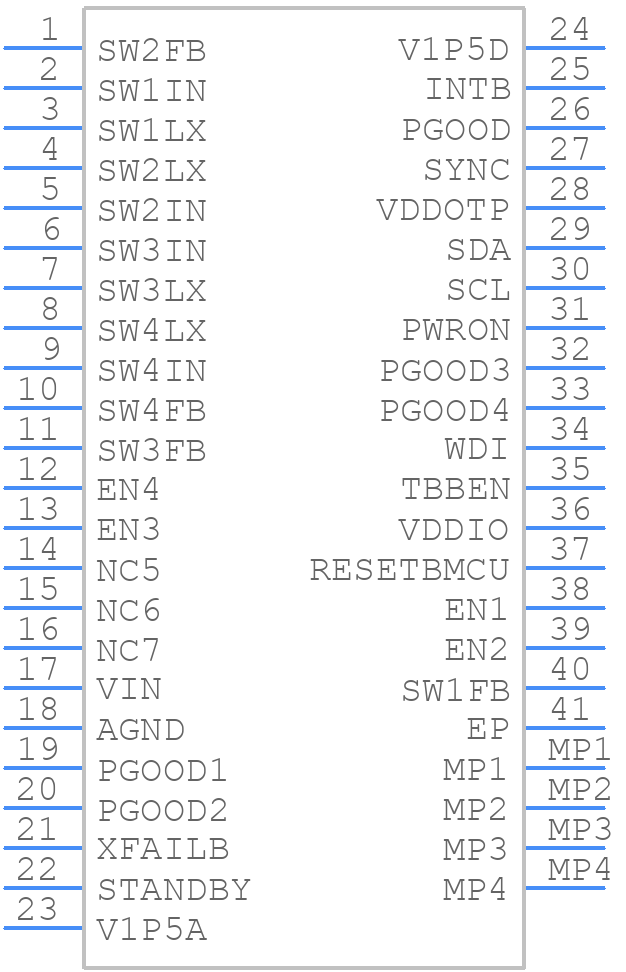

MPF5024AMBA0ESR2 - NXP - PCB symbol
click to zoom
PCB Footprints
MPF5024AMBA0ESR2 - NXP PCB footprint - Other - Other - MPF5024AMBA0ESR2-1
click to zoom
3D Models
MPF5024AMBA0ESR2 - NXP - 3D model - Other - MPF5024AMBA0ESR2-1
click to zoom

MPF5024AMBA0ESR2 Details

  • Manufacturer Part Number:

    MPF5024AMBA0ESR2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2020-04-15

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

MPF5024AMBA0ESR2 Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MPF5024AMBA0ESR2. Ensure that the input and output capacitors are placed close to the IC, and the high-frequency components are separated from the low-frequency components. Use a solid ground plane and avoid vias under the IC. Refer to the NXP application note AN11524 for more detailed guidelines.
  • Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that matches the output voltage. X5R or X7R ceramic capacitors are good options. Refer to the datasheet and application notes for specific recommendations.
  • The maximum ambient temperature for the MPF5024AMBA0ESR2 is 105°C. As the temperature increases, the IC's performance may degrade, and the output voltage may drop. Ensure proper thermal design and heat dissipation to maintain optimal performance.
  • The MPF5024AMBA0ESR2 has an internal voltage reference. To configure the output voltage, use the FB (Feedback) pin and an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage.
  • The minimum input voltage for the MPF5024AMBA0ESR2 is 2.5V. However, the IC can operate down to 2.3V with reduced performance. Ensure that the input voltage is within the recommended range for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPF5024AMBA0ESR2 Overview

Use the download button to access the MPF5024AMBA0ESR2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPF50, or try a keyword search, such as Power Management Circuits

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
