MPFS250T-FCSG536I - Microchip

Description: RISC-V System On Chip (SOC) IC PolarFire® FPGA - 254K Logic Modules 536-LFBGA 2.2MB -40°C ~ 100°C,1.2V to 3.3V

Download MPFS250T-FCSG536I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPFS250T-FCSG536I - Microchip - PCB symbol
click to zoom
PCB Footprints

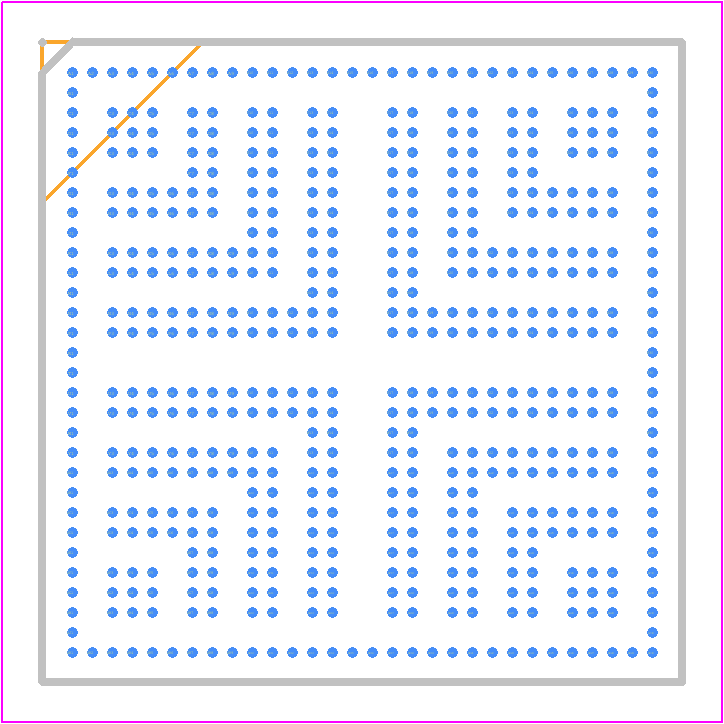

MPFS250T-FCSG536I - Microchip PCB footprint - BGA - BGA - FCSG536
click to zoom
3D Models
MPFS250T-FCSG536I - Microchip - 3D model - BGA - FCSG536
click to zoom

MPFS250T-FCSG536I Details

  • Manufacturer Part Number:

    MPFS250T-FCSG536I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-536

  • Pin Count:

    536

  • Manufacturer Package Code:

    LFBGA-536

  • Country Of Origin:

    South Korea

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    25

  • Additional Feature:

    ALSO OPERATES AT 1.05V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B536

  • Length:

    16 mm

  • Number of Inputs:

    304

  • Number of Logic Cells:

    254000

  • Number of Outputs:

    304

  • Number of Terminals:

    536

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    BGA536,30X30,20

  • Package Shape:

    SQUARE

  • Packing Method:

    TRAY

  • Programmable Logic Type:

    FPGA SOC

  • Supply Voltage-Max:

    1.03 V

  • Supply Voltage-Min:

    0.97 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    16 mm

MPFS250T-FCSG536I Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MPFS250T-FCSG536I evaluation board documentation, which includes a thermal pad connected to a large copper area on the bottom layer to dissipate heat efficiently.
  • To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • Although the datasheet specifies a recommended operating voltage range of 4.5V to 5.5V, the absolute maximum rating for the VIN pin is 6.5V. However, it's recommended to stay within the recommended operating range to ensure reliable operation and prevent damage to the device.
  • To configure the MPFS250T-FCSG536I for low-power operation, use the Power Save Mode (PSM) feature, which can be enabled through the I2C interface. Additionally, consider reducing the switching frequency, using a lower input voltage, and optimizing the output voltage and current settings to minimize power consumption.
  • Microchip recommends using a high-quality, low-ESR ceramic capacitor with a value of 10uF to 22uF, rated for the input voltage range, placed as close as possible to the VIN pin to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPFS250T-FCSG536I Overview

Use the download button to access the MPFS250T-FCSG536I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPFS2, or try a keyword search, such as Field Programmable Gate Arrays
