The recommended PCB layout for the MPL-AL6050-3R3 involves placing the input and output capacitors close to the device, using wide traces for power and ground, and minimizing the loop area of the input and output connections to reduce EMI.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is placed close to the device. You can also add a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
The MPL-AL6050-3R3 is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the device's power dissipation and ensure good airflow to maintain a safe operating temperature.
While the datasheet recommends a specific input capacitor value and type, you can use a different value or type if necessary. However, be aware that this may affect the device's performance, stability, and EMI characteristics. It's recommended to consult with Monolithic Power Systems or perform thorough testing to ensure compatibility.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended design. Use an oscilloscope to inspect the output voltage waveform and look for signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPL-AL6050-3R3 Overview

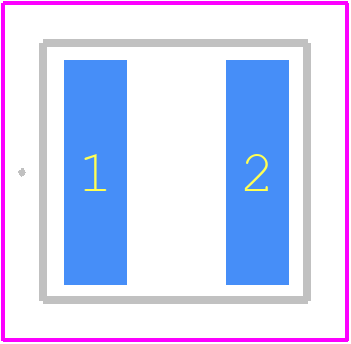

Use the download button to access the MPL-AL6050-3R3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPL-A,
or try a keyword search, such as Fixed Inductors
