A good PCB layout for the MPL-AL6060-150 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal vias are connected to a solid copper plane on the bottom layer. Keep the copper plane as large as possible to dissipate heat efficiently.
To ensure the MPL-AL6060-150 operates within the safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current. Keep the junction temperature below 150°C, input voltage within the recommended range (4.5V to 18V), and output current below the maximum rating (15A). Use thermal monitoring and overcurrent protection to prevent damage.
For the MPL-AL6060-150, a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7μF to 10μF is recommended. This helps to filter out high-frequency noise and ensure stable operation. Place the capacitor as close to the device's input pins as possible.
To troubleshoot output voltage instability or oscillations, check the PCB layout for any signs of parasitic inductance or capacitance. Ensure that the output capacitor is properly sized and placed close to the output pins. Also, verify that the input voltage is stable and within the recommended range. If the issue persists, consider adding a small ceramic capacitor (100nF to 1μF) in parallel with the output capacitor to improve stability.
The maximum allowed voltage drop across the MPL-AL6060-150 is 1.5V. Exceeding this voltage drop may cause the device to overheat or malfunction. Ensure that the input voltage is sufficient to maintain the required output voltage, and consider using a higher input voltage or a different device if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPL-AL6060-150 Overview

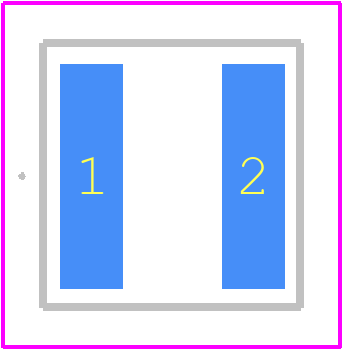

Use the download button to access the MPL-AL6060-150 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPL-A,
or try a keyword search, such as Fixed Inductors
