MPM3510AGQV-P - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 36V/1.2A Module Sync Step-Down Converter

Download MPM3510AGQV-P Model

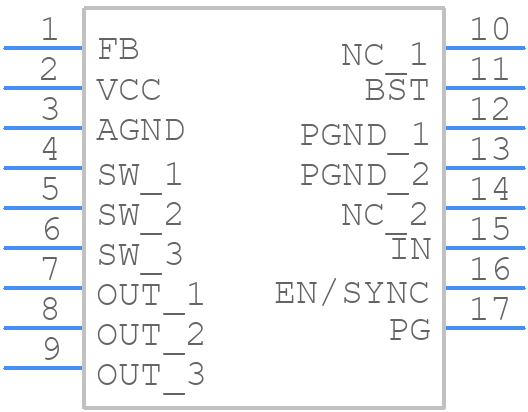

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MPM3510AGQV-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-19 (3mm x 5mm x 1.6mm)
click to zoom
3D Models
MPM3510AGQV-P - Monolithic Power Systems (MPS)  - 3D model - Other - QFN-19 (3mm x 5mm x 1.6mm)
click to zoom

MPM3510AGQV-P Details

  • Manufacturer Part Number:

    MPM3510AGQV-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-19

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    28 Weeks

  • Date Of Intro:

    2020-04-06

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    7.7

  • Additional Feature:

    PFM CONROL ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XQCC-N19

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    19

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.2 A

  • Output Voltage-Max:

    33.12 V

  • Output Voltage-Min:

    0.81 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC19(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1500 kHz

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MPM3510AGQV-P Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths.
  • Ensure that the output capacitor has a low ESR, and the input capacitor has a high capacitance. Also, add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
  • The maximum input voltage is 26V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • The output voltage ripple can be estimated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
  • The thermal derating curve is not explicitly provided in the datasheet, but it's recommended to follow the general guidelines for thermal derating in the application note AN-114 from Monolithic Power Systems.
