MPM3610AGQV-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

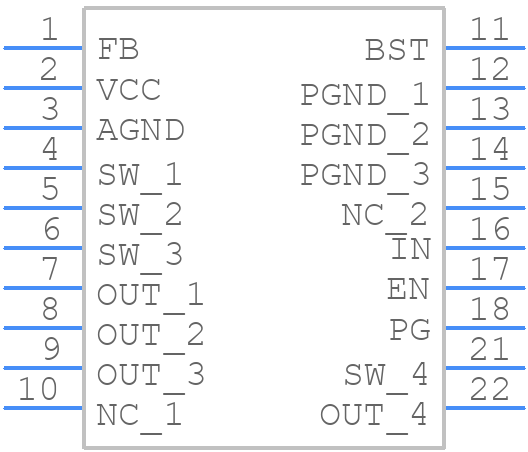

Symbol

click to zoom

PCB Footprints

MPM3610AGQV-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MPM3610AGQV-Z-2

click to zoom

3D Models

MPM3610AGQV-Z - Monolithic Power Systems (MPS) - 3D model - Other - MPM3610AGQV-Z-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPM3610AGQV-Z
Part Number MPM3610AGQV-Z
Manufacturer Monolithic Power Systems (MPS)
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MPM3610AGQV-Z-2
Released Date May 11, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MPM3610AGQV-Z Details

Manufacturer Part Number:
MPM3610AGQV-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
24 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
8
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
21 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XQCC-N20
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.2 A
Output Voltage-Max:
18.69 V
Output Voltage-Min:
0.8 V
Package Body Material:
UNSPECIFIED
Package Code:
QCCN
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.65 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2500 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

MPM3610AGQV-Z Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths.
Ensure that the output capacitor has a low ESR, and the input capacitor has a high capacitance. Also, add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The absolute maximum input voltage is 26V, but it's recommended to operate within the recommended input voltage range of 6.5V to 20V for optimal performance and reliability.
The output voltage accuracy is ±2% over the entire operating temperature range. To calculate the output voltage tolerance, add the output voltage accuracy to the resistor tolerance (e.g., 1% for 1% resistors).
The thermal derating curve is not explicitly provided in the datasheet, but it can be estimated based on the junction-to-ambient thermal resistance (RθJA) of 25°C/W. A safe derating curve would be to reduce the output current by 50% for every 10°C increase above 50°C.

Trust Checks

Expert Contribution

System Verified

Community Approved

MPM3610AGQV-Z Overview

Use the download button to access the MPM3610AGQV-Z schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MPM36, or try a keyword search, such as Switching Regulator or Controllers
