MPM3632SGPQ-Z footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

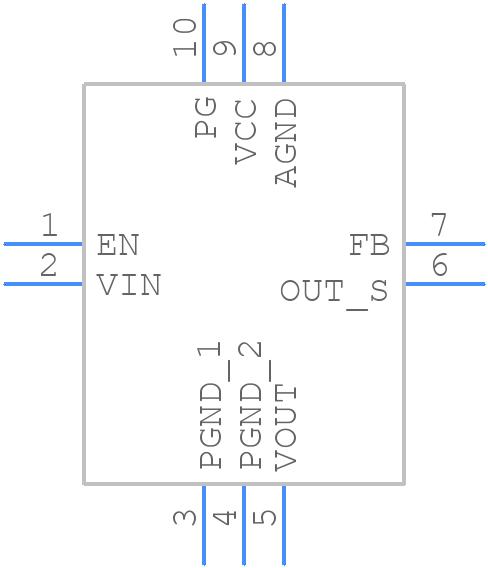

Symbol

click to zoom

PCB Footprints

MPM3632SGPQ-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - EC LGA-10 (3mmx3mmx1.45mm)_2025-1.5

click to zoom

3D Models

MPM3632SGPQ-Z - Monolithic Power Systems (MPS) - 3D model - Other - EC LGA-10 (3mmx3mmx1.45mm)_2025-1.5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPM3632SGPQ-Z
Part Number MPM3632SGPQ-Z
Manufacturer Monolithic Power Systems (MPS)
Pin Count 10
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - EC LGA-10 (3mmx3mmx1.45mm)_2025-1.5
Released Date Oct 21, 2025
Last Modified Date Oct 21, 2025 11:21 AM UTC
Pinout / Pin List Click Here (Member Only)

MPM3632SGPQ-Z Details

Manufacturer Part Number:
MPM3632SGPQ-Z
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-10
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
30 Weeks
Date Of Intro:
2020-04-24
Manufacturer:
Monolithic Power Systems
YTEOL:
8.2
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
18 V
Input Voltage-Min:
4 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XQMA-N10
Length:
3 mm
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
5.2 V
Output Voltage-Min:
0.8 V
Package Body Material:
UNSPECIFIED
Package Code:
QMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Seated Height-Max:
1.5 mm
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2530 kHz
Technology:
HYBRID
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
QUAD
Width:
3 mm

MPM3632SGPQ-Z Frequently Asked Questions (FAQs)

A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching node (SW pin) away from sensitive analog nodes and ensure good thermal conduction to the PCB ground plane.
Choose an output capacitor with low ESR (Equivalent Series Resistance) and high capacitance. A 22μF to 47μF ceramic capacitor with X5R or X7R dielectric is recommended. Ensure the capacitor is rated for the output voltage and has a low ESL (Equivalent Series Inductance).
Use a 10μF to 22μF ceramic capacitor with X5R or X7R dielectric, placed close to the VIN pin. Ensure the capacitor is rated for the input voltage and has a low ESL.
Monitor the input voltage, output voltage, and junction temperature. Ensure the input voltage is within the recommended range (2.7V to 5.5V), the output voltage is within the specified range (0.8V to 3.3V), and the junction temperature is below 125°C.
Use a shielded inductor, keep the switching node (SW pin) away from sensitive analog nodes, and ensure good PCB layout practices. Add a 10nF to 100nF capacitor in parallel with the output capacitor to reduce high-frequency noise.
