A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
Monitor the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges. Also, ensure the device is operated within the recommended ambient temperature range.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input decoupling. The capacitor should be placed close to the device's input pins.
Choose an output capacitor with a low ESR and a value between 10uF to 47uF. The capacitor should be placed close to the device's output pins. The output capacitor value and type may need to be adjusted based on the specific application requirements.
Keep the high-current paths short and wide to minimize resistance and inductance. Use thick copper traces (at least 1 oz) and avoid sharp corners or narrow necks in the traces. Also, ensure the high-current paths are not routed near sensitive analog signals.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM3650GQW-Z Overview

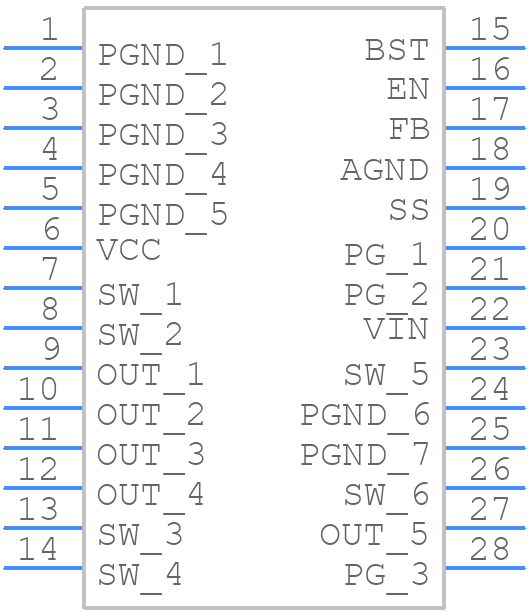

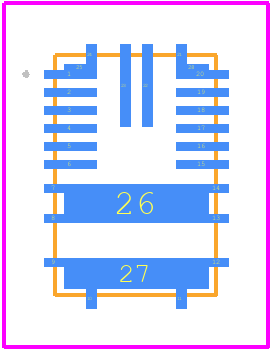

Use the download button to access the MPM3650GQW-Z schematic symbol, PCB footprint, and 3D model.
