MPM3682GRE - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 18V 10A Step-Down Power Module

Download MPM3682GRE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPM3682GRE - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints

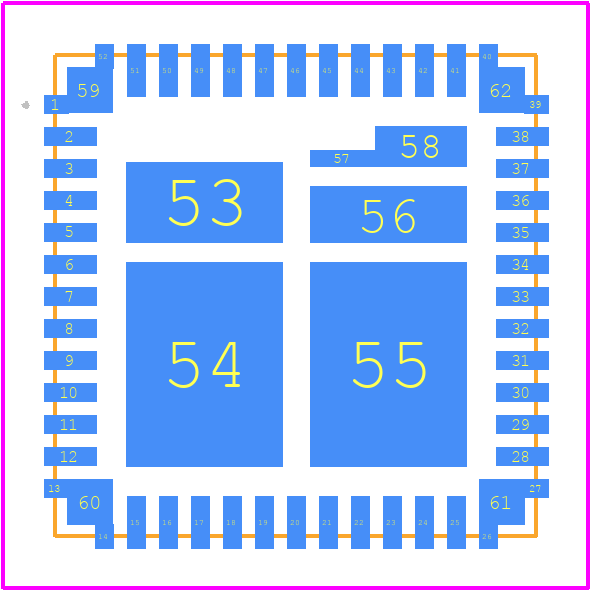

MPM3682GRE - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-57 (12mmx12mmx4mm)
click to zoom
3D Models
MPM3682GRE - Monolithic Power Systems (MPS) - 3D model - Other - QFN-57 (12mmx12mmx4mm)
click to zoom

MPM3682GRE Details

  • Manufacturer Part Number:

    MPM3682GRE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    QFN-57

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    3

  • Additional Feature:

    OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.65V TO 5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XXMA-N57

  • Length:

    12 mm

  • Number of Functions:

    1

  • Number of Terminals:

    57

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    19 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    12 mm

MPM3682GRE Frequently Asked Questions (FAQs)

  • The MPM3682GRE can handle a maximum input voltage of 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To minimize EMI, keep the input and output capacitors close to the IC, use a solid ground plane, and keep the high-current paths short and direct. Also, consider using a shielded inductor and orienting the IC to minimize radiation.
  • The recommended PCB layout for the MPM3682GRE is to use a 4-layer board with a solid ground plane, and to keep the input and output capacitors close to the IC. The datasheet provides a recommended layout diagram.
  • The output voltage of the MPM3682GRE can be calculated using the formula: Vout = (R1/R2) * (Vin - Vref), where R1 and R2 are the feedback resistors, Vin is the input voltage, and Vref is the reference voltage (typically 0.8V).
  • The maximum output current of the MPM3682GRE is 2A, but it's recommended to derate the output current based on the ambient temperature and the input voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPM3682GRE Overview

Use the download button to access the MPM3682GRE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM36, or try a keyword search, such as Switching Regulator or Controllers
