MPM3811GG-P - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators 2.3V-5.5V Input, 1A Power Module

Download MPM3811GG-P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

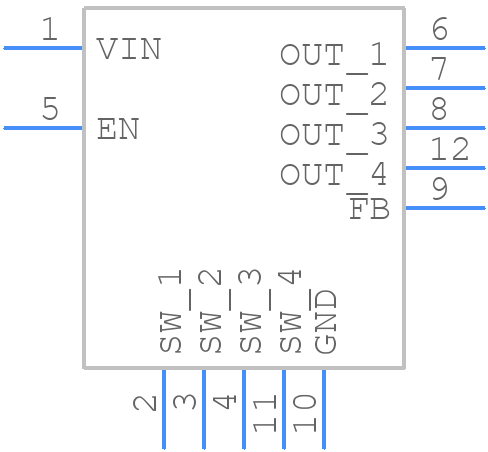

MPM3811GG-P - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MPM3811GG-P - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-10 (2mmx2mmx1.6mm)
click to zoom
3D Models
MPM3811GG-P - Monolithic Power Systems (MPS) - 3D model - Other - QFN-10 (2mmx2mmx1.6mm)
click to zoom

MPM3811GG-P Details

  • Manufacturer Part Number:

    MPM3811GG-P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-XQCC-N10

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC10,.08SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    3000 kHz

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

MPM3811GG-P Frequently Asked Questions (FAQs)

  • The MPM3811GG-P can handle a maximum input voltage of 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a sufficient output capacitor with a low ESR (Equivalent Series Resistance) and a minimum capacitance of 10uF. Also, ensure that the output capacitor is placed close to the output pin of the IC.
  • The MPM3811GG-P can provide a maximum output current of 1.5A, but it's recommended to keep it below 1.2A for optimal performance and reliability.
  • The output voltage of the MPM3811GG-P can be adjusted by using a resistive divider network between the output pin and the ground pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin on the MPM3811GG-P is used to enable or disable the output voltage. When the EN pin is pulled high, the output voltage is enabled, and when it's pulled low, the output voltage is disabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPM3811GG-P Overview

Use the download button to access the MPM3811GG-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM38, or try a keyword search, such as Switching Regulator or Controllers
