A good PCB layout for the MPM3840GQV-Z should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) close to the VIN pin. Additionally, the input and output capacitors should be placed as close to the IC as possible.
To ensure stability, make sure the output capacitor (CO) is within the recommended range (22uF to 47uF), and the ESR (Equivalent Series Resistance) is less than 1 ohm. Also, ensure the input capacitor (CI) is at least 10uF and has a low ESR.
The MPM3840GQV-Z can operate reliably up to an ambient temperature of 85°C (185°F). However, it's recommended to derate the output current and input voltage to ensure reliable operation at higher temperatures.
The output voltage ripple and noise can be calculated using the following formula: ΔVout = (Iout * ESR) / (f * C), where Iout is the output current, ESR is the equivalent series resistance of the output capacitor, f is the switching frequency, and C is the output capacitance.
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of at least 10uF is recommended for the input capacitor (CI). This helps to filter out input voltage noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM3840GQV-Z Overview

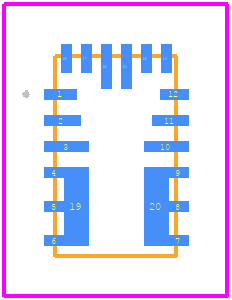

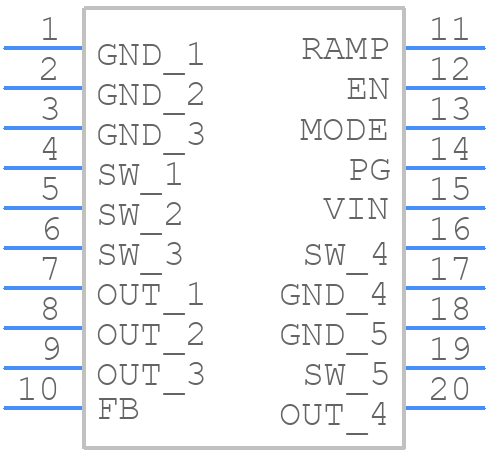

Use the download button to access the MPM3840GQV-Z schematic symbol, PCB footprint, and 3D model.
