MPQ2013AGQ-Z - Monolithic Power Systems (MPS)

Description: LDO Voltage Regulators Industrial Grade,40V,150mA,Low Quiescent Current Linear Regulator

Download MPQ2013AGQ-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

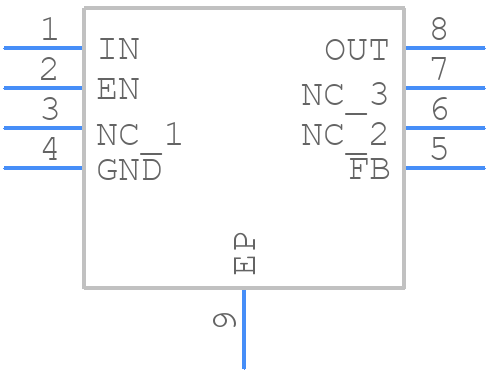

MPQ2013AGQ-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MPQ2013AGQ-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN-8 (3×3mm)
click to zoom
3D Models
MPQ2013AGQ-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline No-lead - QFN-8 (3×3mm)
click to zoom

MPQ2013AGQ-Z Details

  • Manufacturer Part Number:

    MPQ2013AGQ-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    6.2

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Terminal Finish:

    MATTE TIN

  • Time@Peak Reflow Temperature-Max (s):

    40

MPQ2013AGQ-Z Frequently Asked Questions (FAQs)

  • The MPQ2013AGQ-Z can handle up to 24V input voltage, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value.
  • The MPQ2013AGQ-Z can provide up to 3A of output current, but it's recommended to operate within the specified output current range of 0.5A to 2A for optimal performance and reliability.
  • The output voltage of the MPQ2013AGQ-Z can be adjusted by using an external resistor divider network connected to the FB (Feedback) pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The EN (Enable) pin is used to enable or disable the MPQ2013AGQ-Z. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing or to turn off the device when not in use.
