A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current. Ensure that the device is not subjected to excessive voltage, current, or temperature stress. Consult the datasheet for the recommended operating conditions and SOA graphs.
The recommended input and output capacitors for the MPQ28261DL-LF-Z are ceramic capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. A 10uF to 22uF input capacitor and a 10uF to 22uF output capacitor are recommended. However, the optimal capacitor values may vary depending on the specific application and operating conditions.
To troubleshoot issues with the MPQ28261DL-LF-Z, start by checking the device's operating conditions, such as input voltage, output current, and junction temperature. Verify that the device is properly soldered and that the PCB layout is correct. Use oscilloscopes and thermal imaging cameras to identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines and contact Monolithic Power Systems' technical support if necessary.
Operating the MPQ28261DL-LF-Z beyond the recommended operating conditions can lead to reduced reliability, decreased efficiency, and increased thermal stress. This can result in premature device failure, reduced lifespan, or even catastrophic failure. It is essential to operate the device within the recommended operating conditions to ensure optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ28261DL-LF-Z Overview

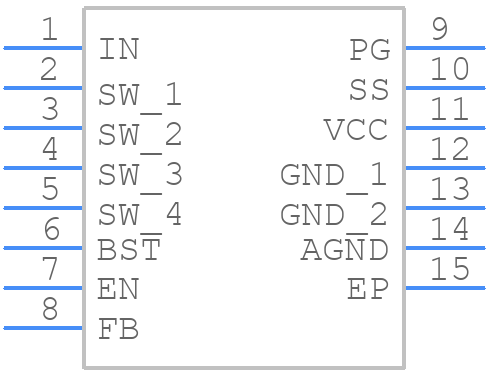

Use the download button to access the MPQ28261DL-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPQ28,
or try a keyword search, such as Switching Regulator or Controllers
