A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection, under-voltage protection, and over-current protection to prevent damage to the device. Also, ensure the device is operated within the recommended temperature range.
The recommended input capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency. The datasheet provides the necessary parameters to calculate the output voltage ripple.
The recommended output capacitor type is a low-ESR ceramic capacitor with a value of 10uF to 47uF. The capacitor should be placed as close to the device as possible to minimize noise and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ4430GL-AEC1-Z Overview

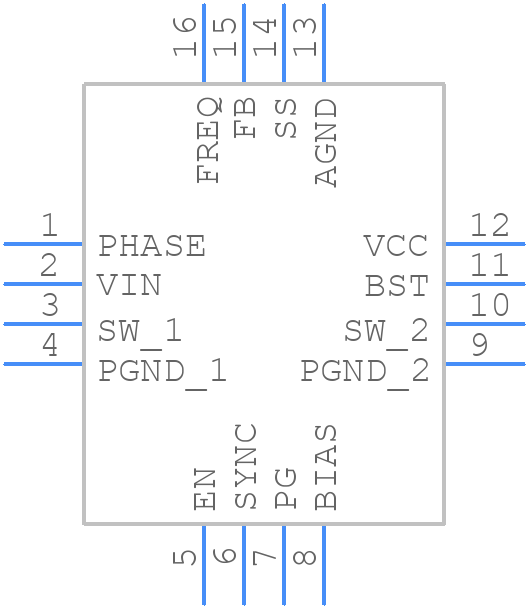

Use the download button to access the MPQ4430GL-AEC1-Z schematic symbol, PCB footprint, and 3D model.
