The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the input and output capacitors close to the device and using short, wide traces can help reduce thermal resistance.
To ensure stability, it's essential to follow the recommended component values and layout guidelines in the datasheet. Additionally, make sure to decouple the input and output with suitable capacitors, and use a low-ESR output capacitor to minimize ringing. If oscillation occurs, try adding a small resistor (e.g., 1-10 ohms) in series with the output capacitor to dampen the oscillation.
The MPQ6411GS-AEC1-Z can tolerate a certain amount of input voltage ripple, but it's not explicitly stated in the datasheet. As a general guideline, it's recommended to keep the input voltage ripple below 10% of the nominal input voltage to ensure reliable operation and minimize the risk of instability or damage.
The MPQ6411GS-AEC1-Z is rated for operation up to 125°C, but its performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, make sure to derate the output current and voltage according to the thermal derating curves provided in the datasheet, and ensure proper heat sinking and airflow.
To troubleshoot issues with the MPQ6411GS-AEC1-Z, start by verifying the input voltage, output voltage, and output current are within the specified ranges. Check the PCB layout and component values to ensure they match the recommended values in the datasheet. Use an oscilloscope to inspect the input and output waveforms for signs of oscillation or ringing. If the issue persists, try replacing the device or consulting with a Monolithic Power Systems application engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPQ6411GS-AEC1-Z Overview

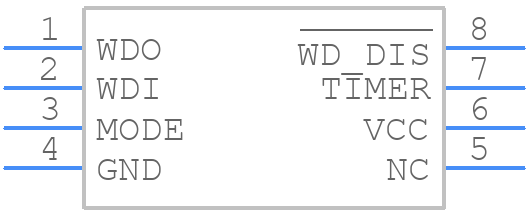

Use the download button to access the MPQ6411GS-AEC1-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPQ64,
or try a keyword search, such as Other Signal Circuits
