MPS-04-01-03-L-RA-SD footprint, schematic symbol and 3D model by SAMTEC

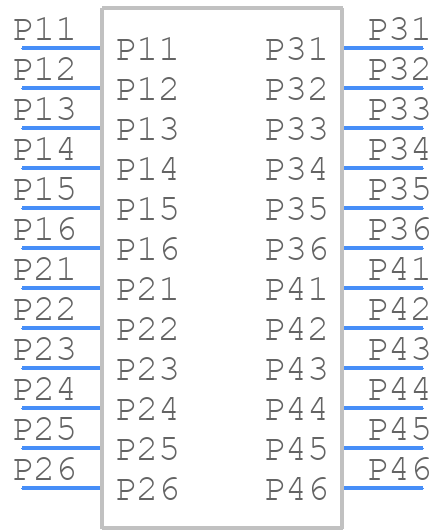

Symbol

click to zoom

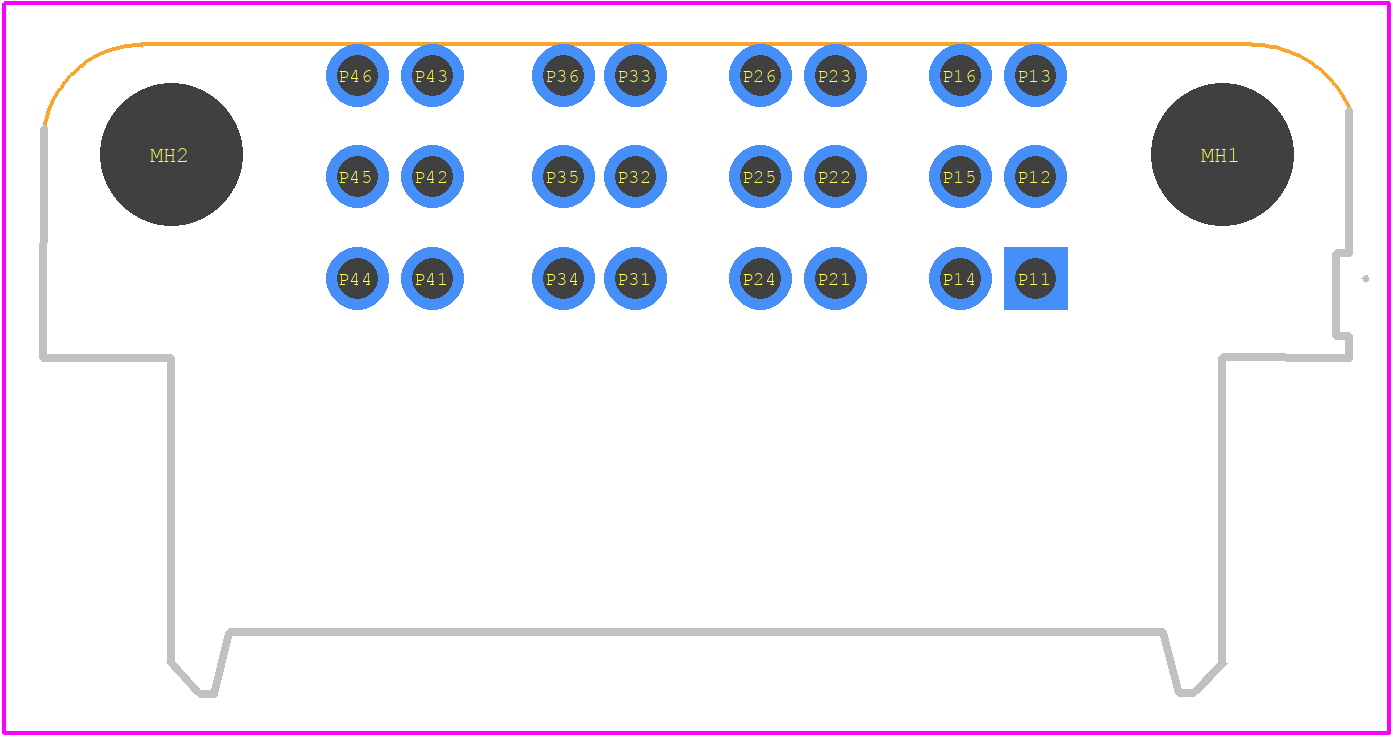

PCB Footprints

MPS-04-01-03-L-RA-SD - SAMTEC PCB footprint - Other - Other - MPS-04-01-03-L-RA-SD-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPS-04-01-03-L-RA-SD
Part Number MPS-04-01-03-L-RA-SD
Manufacturer SAMTEC
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - MPS-04-01-03-L-RA-SD-1
Released Date Jun 14, 2022
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

MPS-04-01-03-L-RA-SD Details

Manufacturer Part Number:
MPS-04-01-03-L-RA-SD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER): 28A
Body Breadth:
0.49 inch
Body Depth:
0.448 inch
Body Length:
1.085 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
FEMALE
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLAE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
4
UL Flammability Code:
94V-0

MPS-04-01-03-L-RA-SD Frequently Asked Questions (FAQs)

The recommended mating sequence for the MPS-04-01-03-L-RA-SD connector is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the MPS-04-01-03-L-RA-SD connector is designed to withstand high-vibration environments. It has a ruggedized design and a secure locking mechanism to ensure reliable connections in harsh conditions.
The operating temperature range for the MPS-04-01-03-L-RA-SD connector is -55°C to 125°C. However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
Yes, the MPS-04-01-03-L-RA-SD connector is designed for high-speed signal transmission. It has a controlled impedance and a shielded design to minimize signal loss and electromagnetic interference (EMI).
The MPS-04-01-03-L-RA-SD connector has a sealed design to prevent moisture ingress. However, it's still important to follow proper sealing and potting procedures to ensure the connector's reliability in humid or wet environments.
