Please enter a minimum 3 letters or numbers
Technical Content
Part Image

MPS-08-01-01-T-RA-SD - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip /30 A Dual Leaf Socket Strip

Download MPS-08-01-01-T-RA-SD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

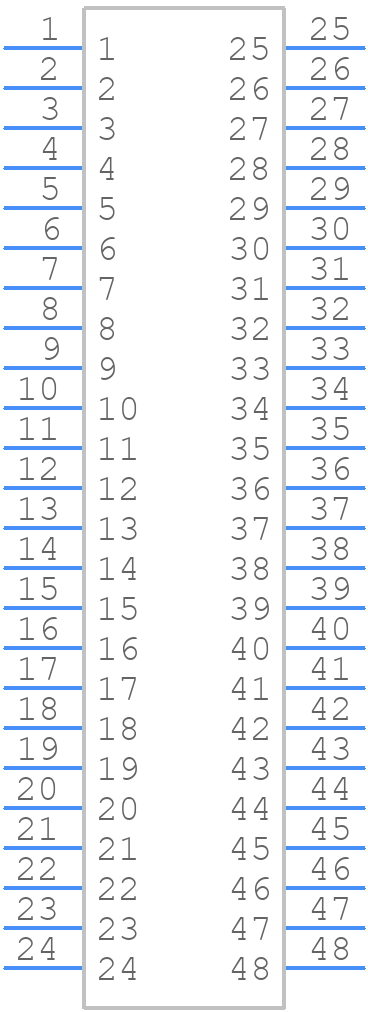

MPS-08-01-01-T-RA-SD - SAMTEC - PCB symbol
click to zoom
PCB Footprints

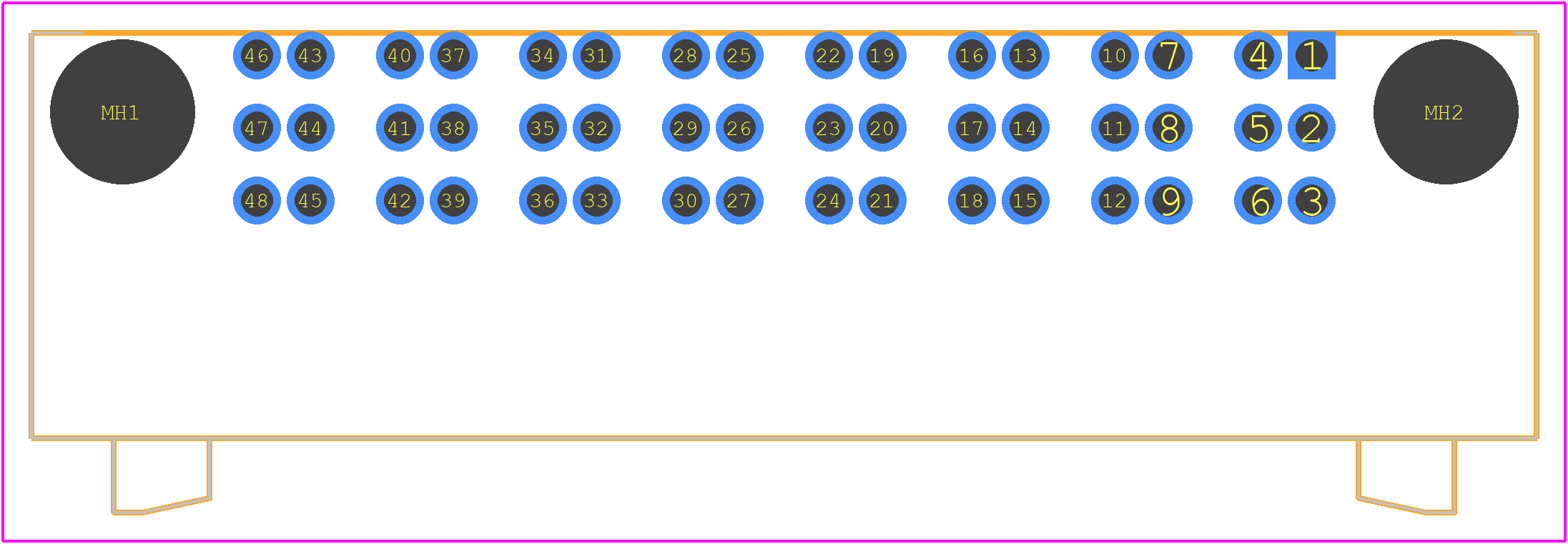

MPS-08-01-01-T-RA-SD - SAMTEC PCB footprint - Other - Other - MPS-08-01-01-T-RA-SD-3
click to zoom
3D Models
MPS-08-01-01-T-RA-SD - SAMTEC - 3D model - Other - MPS-08-01-01-T-RA-SD-3
click to zoom

MPS-08-01-01-T-RA-SD Details

  • Manufacturer Part Number:

    MPS-08-01-01-T-RA-SD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 28A

  • Body Breadth:

    0.49 inch

  • Body Depth:

    0.448 inch

  • Body Length:

    1.873 inch

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Information:

    MULTIPLAE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

MPS-08-01-01-T-RA-SD Frequently Asked Questions (FAQs)

  • Samtec recommends mating the connector in the following sequence: 1) align the connectors, 2) mate the guides, and 3) mate the contacts. This sequence helps prevent damage to the guides and ensures proper mating.
  • The MPS-08-01-01-T-RA-SD connector has a polarized design to prevent mis-mating. Ensure that the keying feature on the plug is aligned with the corresponding keyway on the receptacle during mating.
  • The MPS-08-01-01-T-RA-SD connector is rated for operation in temperatures ranging from -55°C to +125°C.
  • Yes, the MPS-08-01-01-T-RA-SD connector is designed to withstand high-vibration environments. Samtec's ruggedized design and secure mating ensure reliable connections in demanding applications.
  • Use a soft, dry brush or a lint-free swab to gently remove any debris or contaminants from the connector contacts. Avoid using harsh chemicals or solvents, as they can damage the connector's materials.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPS-08-01-01-T-RA-SD Overview

Use the download button to access the MPS-08-01-01-T-RA-SD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPS-0, or try a keyword search, such as Power Connectors

Parts related to MPS-08-01-01-T-RA-SD

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑
