MPS-08-7.70-01-L-V footprint, schematic symbol and 3D model by SAMTEC

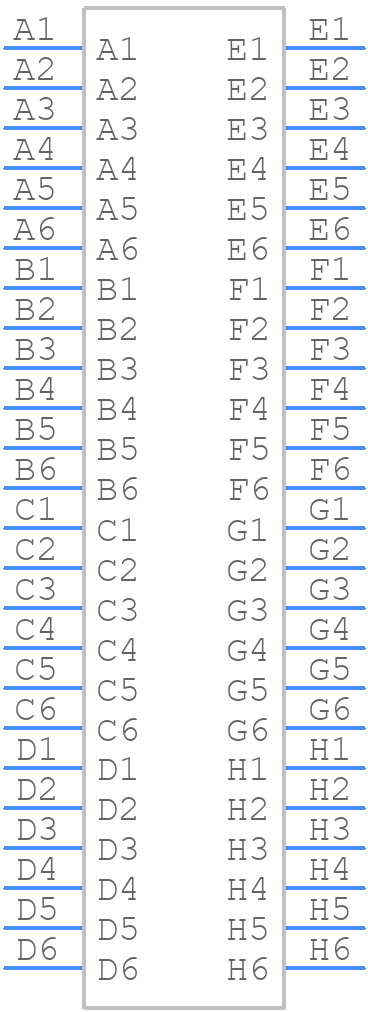

Symbol

click to zoom

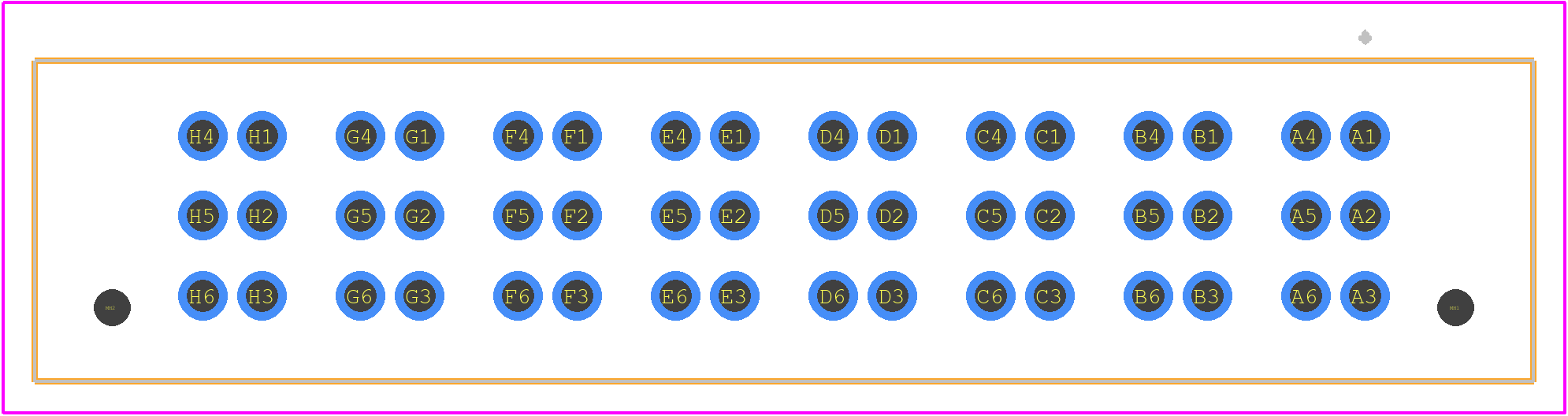

PCB Footprints

MPS-08-7.70-01-L-V - SAMTEC PCB footprint - Other - Other - MPS-08-7.70-01-L-V-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPS-08-7.70-01-L-V
Part Number MPS-08-7.70-01-L-V
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - MPS-08-7.70-01-L-V-3
Released Date Jun 28, 2020
Last Modified Date Sep 9, 2025 9:48 AM UTC
Pinout / Pin List Click Here (Member Only)

MPS-08-7.70-01-L-V Details

Manufacturer Part Number:
MPS-08-7.70-01-L-V
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks, 5 Days
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER): 28A
Body Breadth:
0.49 inch
Body Depth:
0.448 inch
Body Length:
1.873 inch
Body/Shell Style:
SOCKET
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Gender:
FEMALE
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Information:
MULTIPLAE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94V-0

MPS-08-7.70-01-L-V Frequently Asked Questions (FAQs)

The recommended torque for the screws on the MPS-08-7.70-01-L-V connector is 0.5-1.5 N·m (4-12 in·lb).
Yes, the MPS-08-7.70-01-L-V connector is designed to withstand high-vibration environments and is suitable for applications with vibration levels up to 20 G.
Yes, the MPS-08-7.70-01-L-V connector is designed to operate in harsh environments, including temperatures ranging from -55°C to 125°C and humidity levels up to 95% RH.
The MPS-08-7.70-01-L-V connector has a mating cycle life of 500 cycles minimum.
Yes, the MPS-08-7.70-01-L-V connector is RoHS and REACH compliant, meeting the requirements for lead-free and hazardous substance-free materials.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MPS-08-7.70-01-L-V Overview

Use the download button to access the MPS-08-7.70-01-L-V schematic symbol and PCB footprint.
