MPT-08-01-01-L-RA-LC - SAMTEC

Description: Power to the Board 5.00 mm PowerStrip(TM)/30 A Dual Blade Terminal Strip

Download MPT-08-01-01-L-RA-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

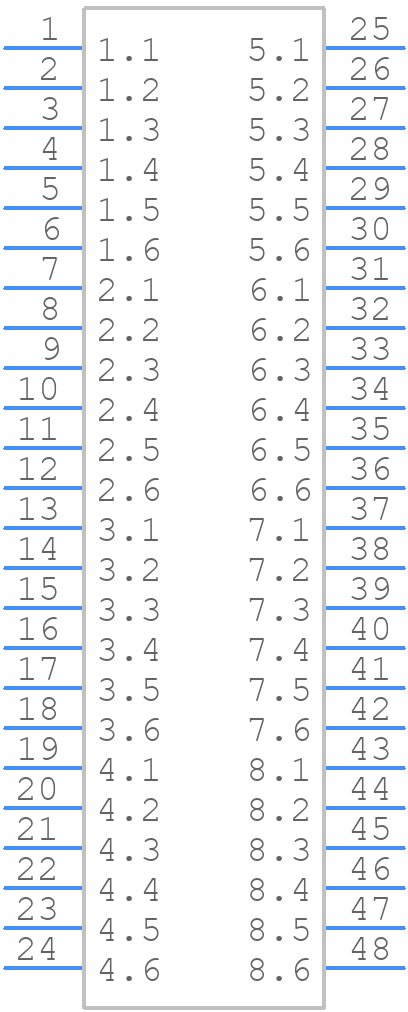

MPT-08-01-01-L-RA-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints

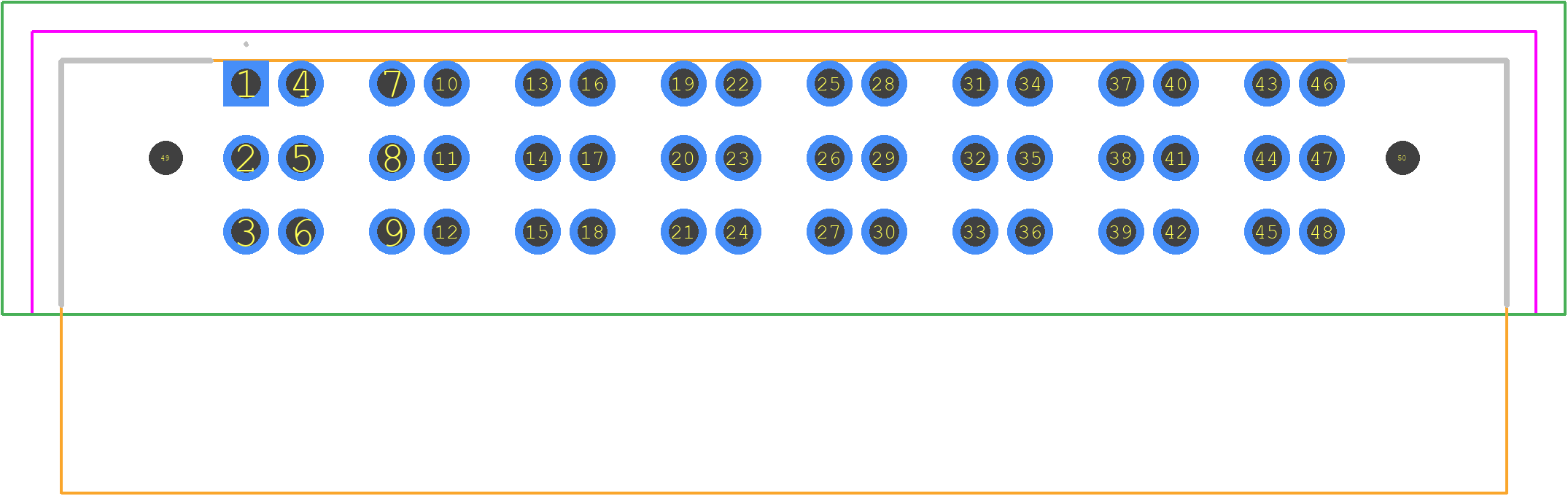

MPT-08-01-01-L-RA-LC - SAMTEC PCB footprint - Other - Other - MPT-08-01-01-L-RA-LC-1
click to zoom
3D Models
MPT-08-01-01-L-RA-LC - SAMTEC - 3D model - Other - MPT-08-01-01-L-RA-LC-1
click to zoom

MPT-08-01-01-L-RA-LC Details

  • Manufacturer Part Number:

    MPT-08-01-01-L-RA-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7.24

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

MPT-08-01-01-L-RA-LC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm). It's essential to follow the recommended torque to ensure secure mating and prevent damage to the connector.
  • Yes, the MPT-08-01-01-L-RA-LC connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper screw locking and secure mating to prevent connector damage or disconnection.
  • The operating temperature range for the MPT-08-01-01-L-RA-LC connector is -55°C to 125°C (-69°F to 257°F). It's essential to ensure the connector operates within this range to maintain its performance and reliability.
  • The MPT-08-01-01-L-RA-LC connector is designed to operate in a variety of environments, including high-humidity and corrosive environments. However, it's essential to follow proper cleaning and maintenance procedures to ensure the connector's performance and reliability.
  • The MPT-08-01-01-L-RA-LC connector has a mating cycle life of 500 cycles minimum. This means the connector can withstand at least 500 mating and unmating cycles without compromising its performance or reliability.
