The MPU-6050 can output data at a maximum frequency of 1 kHz (1000 Hz) in the fastest mode, but this can be adjusted to lower frequencies such as 200 Hz, 100 Hz, or 50 Hz depending on the application's requirements.
Calibration of the MPU-6050 involves compensating for sensor biases and scaling factors. This can be done using the built-in self-test function or by performing a series of movements to collect data and calculate the calibration coefficients.
The MPU-9250 is a more advanced version of the MPU-6050, with additional features such as a built-in magnetometer, higher resolution, and improved noise performance. The MPU-6050 is a 3-axis accelerometer and 3-axis gyroscope, while the MPU-9250 is a 9-axis sensor with a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer.
The MPU-6050 can be interfaced with a microcontroller using the I2C (Inter-Integrated Circuit) or SPI (Serial Peripheral Interface) protocol. The MPU-6050 acts as a slave device, and the microcontroller acts as the master device, sending commands and reading data from the MPU-6050.
The MPU-6050 has a typical current consumption of 3.6 mA at 3.3V, but this can vary depending on the operating mode and frequency of data output. The device also has a low-power mode that reduces current consumption to around 1.5 mA.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPU-6050 Overview

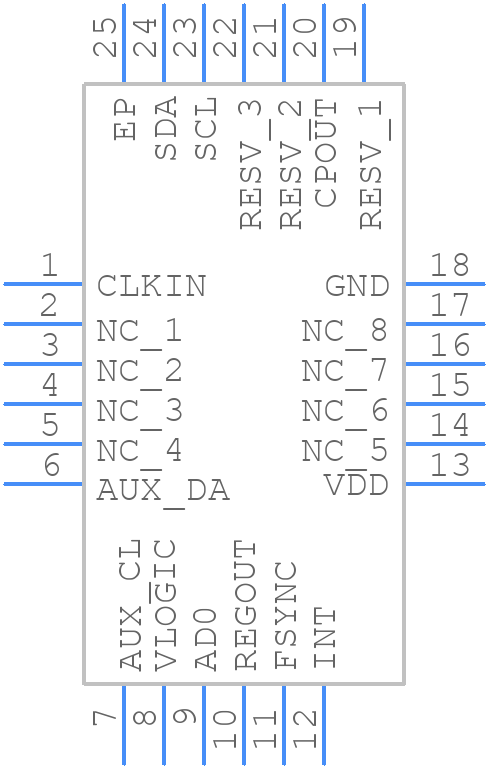

Use the download button to access the MPU-6050 schematic symbol, PCB footprint, and 3D model.
