MPVZ5004GW7U - NXP

Description: Board Mount Pressure Sensors SOP DIP SIFEL W/M PRT

Download MPVZ5004GW7U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

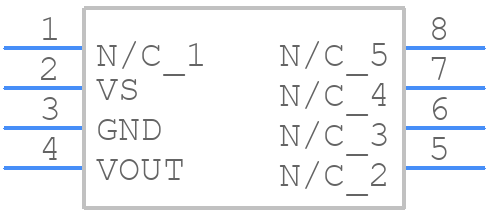

MPVZ5004GW7U - NXP - PCB symbol
click to zoom
PCB Footprints
MPVZ5004GW7U - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - CASE 1560-02
click to zoom
3D Models
MPVZ5004GW7U - NXP - 3D model - Dual-In-Line Packages - CASE 1560-02
click to zoom

MPVZ5004GW7U Details

  • Manufacturer Part Number:

    MPVZ5004GW7U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Accuracy-Max (%):

    6.25%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    10.67 mm

  • Body Height:

    19.69 mm

  • Body Length or Diameter:

    10.67 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    1V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    85 °C

  • Output Range:

    1-4.90V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    0.56 Psi

  • Pressure Sensing Mode:

    GAGE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

MPVZ5004GW7U Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Monitor input voltage, output voltage, output current, and temperature. Implement over-voltage, under-voltage, over-current, and over-temperature protection.
  • Use a shielded enclosure, keep sensitive components away from the DC-DC converter, and use a common-mode choke to reduce EMI. Ensure proper grounding and decoupling.
  • Use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10-22 μF, depending on the input voltage and ripple requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPVZ5004GW7U Overview

Use the download button to access the MPVZ5004GW7U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPVZ5, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
