MPVZ5010GW7U - NXP

Description: Pressure Sensor 0.2V to 4.7V 0kPa to 10kPa Gage 8-Pin Case 1560-02 Tube

Download MPVZ5010GW7U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

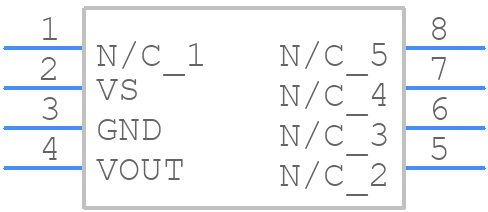

MPVZ5010GW7U - NXP - PCB symbol
click to zoom
PCB Footprints
MPVZ5010GW7U - NXP PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - MPVZ5010GW7U
click to zoom
3D Models
MPVZ5010GW7U - NXP - 3D model - Dual-In-Line Packages - MPVZ5010GW7U
click to zoom

MPVZ5010GW7U Details

  • Manufacturer Part Number:

    MPVZ5010GW7U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Accuracy-Max (%):

    5%

  • Additional Feature:

    TEMPERATURE COMPENSATED

  • Body Breadth:

    10.67 mm

  • Body Height:

    19.69 mm

  • Body Length or Diameter:

    10.67 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    1.45 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
