MPXH6101A6T1 - NXP

Description: Pressure Sensor 2.18PSI ~ 15.23PSI (15kPa ~ 105kPa) Absolute 0.2 V ~ 5 V 8-SOIC (0.295", 7.50mm Width)

Download MPXH6101A6T1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

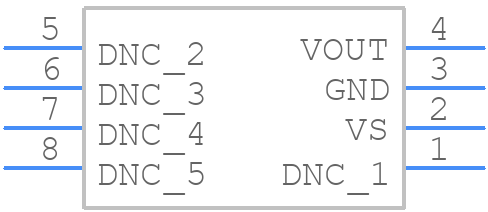

MPXH6101A6T1 - NXP - PCB symbol
click to zoom
PCB Footprints
MPXH6101A6T1 - NXP PCB footprint - Other - Other - 98ARH99066A
click to zoom
3D Models
MPXH6101A6T1 - NXP - 3D model - Other - 98ARH99066A
click to zoom

MPXH6101A6T1 Details

  • Manufacturer Part Number:

    MPXH6101A6T1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    PLASTIC, SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.72%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION

  • Body Breadth:

    7.36 mm

  • Body Height:

    3.93 mm

  • Body Length or Diameter:

    7.36 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    1.72 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.22V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-5.0V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    HOLE

  • Pressure Range-Max:

    15.2 Psi

  • Pressure Range-Min:

    2.18 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    15000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXH6101A6T1 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXH6101A6T1 application note (AN12272). It's essential to follow these guidelines to ensure proper sensor operation and minimize noise.
  • Calibration is not required for the MPXH6101A6T1, as it is a calibrated device. However, if you need to perform a system-level calibration, you can use the sensor's internal calibration coefficients and follow the calibration procedure outlined in the datasheet.
  • The MPXH6101A6T1 is rated for a maximum pressure of 10 bar (145 psi). Exceeding this pressure may damage the sensor or affect its accuracy.
  • The MPXH6101A6T1 is not designed for use in humid or wet environments. It's essential to protect the sensor from moisture and water ingress to ensure reliable operation.
  • The POR time for the MPXH6101A6T1 is approximately 2 ms. This is the time it takes for the sensor to stabilize and provide accurate readings after power-up.
