MPXH6115AC6U - NXP

Description: Board Mount Pressure Sensors 16.7psi 115kPA Pressure Sensor

Download MPXH6115AC6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

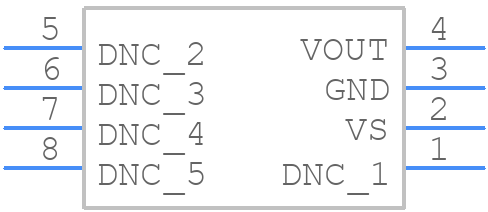

Symbol
MPXH6115AC6U - NXP - PCB symbol
click to zoom
PCB Footprints
MPXH6115AC6U - NXP PCB footprint - Other - Other - MPXH6115AC6U-1
click to zoom
3D Models
MPXH6115AC6U - NXP - 3D model - Other - MPXH6115AC6U-1
click to zoom

MPXH6115AC6U Details

  • Manufacturer Part Number:

    MPXH6115AC6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SSOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION, SENSITIVITY VALUE IS 45.9

  • Body Breadth:

    8.5 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    8.5 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    1.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.80V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    STRAIGHT

  • Pressure Range-Max:

    16.7 Psi

  • Pressure Range-Min:

    2.2 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXH6115AC6U Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXH6115AC6U application note (AN12272). It's essential to follow these guidelines to ensure proper sensor operation and minimize noise.
  • Calibration involves compensating for offset, sensitivity, and temperature effects. NXP provides a calibration procedure in the MPXH6115AC6U application note (AN12272). You can also use external calibration tools or software libraries provided by NXP or third-party vendors.
  • To prevent damage, ensure that the power supply is stable and within the recommended voltage range (1.8V to 3.6V) before applying power to the sensor. A soft-start power-on sequence is recommended to prevent inrush currents.
  • The MPXH6115AC6U has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, wrist straps, and mats to prevent damage.
  • The MPXH6115AC6U is specified to operate from -40°C to 125°C. However, the accuracy and performance may degrade at extreme temperatures. Ensure your application stays within the recommended temperature range for optimal performance.
