MPXHZ6130A6U - NXP

Description: Pressure Sensor 2.18PSI ~ 18.85PSI (15kPa ~ 130kPa) Absolute 0.2 V ~ 4.8 V 8-SOIC (0.295", 7.50mm Width)

Download MPXHZ6130A6U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

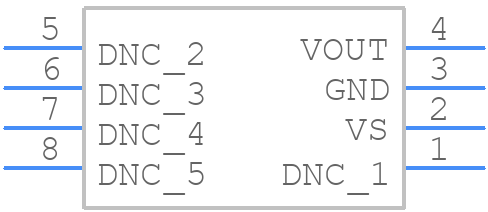

MPXHZ6130A6U - NXP - PCB symbol
click to zoom
PCB Footprints
MPXHZ6130A6U - NXP PCB footprint - Other - Other - SO8
click to zoom
3D Models
MPXHZ6130A6U - NXP - 3D model - Other - SO8
click to zoom

MPXHZ6130A6U Details

  • Manufacturer Part Number:

    MPXHZ6130A6U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    39 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Additional Feature:

    IT HAS A SENSITIVITY OF 39.2 MV/KPA

  • Body Breadth:

    7.37 mm

  • Body Height:

    4.19 mm

  • Body Length or Diameter:

    7.37 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.80V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    HOLE

  • Pressure Range-Max:

    18.85 Psi

  • Pressure Range-Min:

    2.16 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium (Ni/Pd)

  • Termination Type:

    SOLDER

MPXHZ6130A6U Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout and land pattern in the MPXHZ6130A6U application note (AN12272). It's essential to follow this layout to ensure proper sensor operation and minimize noise.
  • Calibration involves adjusting the sensor's output to match the specific pressure range and desired output signal. NXP provides a calibration procedure in the datasheet, and additional guidance can be found in application notes and technical support resources.
  • The MPXHZ6130A6U is rated for a maximum pressure of 10 bar (145 psi). Exceeding this pressure can damage the sensor or affect its accuracy.
  • The MPXHZ6130A6U is an ESD-sensitive device. Handle the device by the body, avoid touching the pins, and use an ESD wrist strap or mat to prevent damage from static electricity.
  • The MPXHZ6130A6U operates from -40°C to 125°C (-40°F to 257°F). Operating outside this range can affect the sensor's accuracy and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPXHZ6130A6U Overview

Use the download button to access the MPXHZ6130A6U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPXHZ, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
