MPXV5050DP - NXP

Description: NXP - MPXV5050DP - SENSOR, PRESSURE, DUAL, DIFF, 0-0.5BAR

Download MPXV5050DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

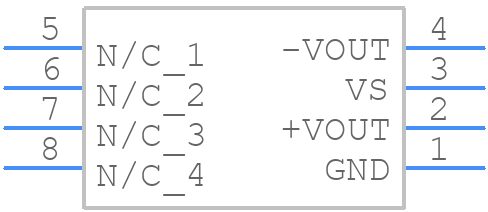

MPXV5050DP - NXP - PCB symbol
click to zoom
PCB Footprints
MPXV5050DP - NXP PCB footprint - Other - Other - MPXV5050DP-2
click to zoom
3D Models
MPXV5050DP - NXP - 3D model - Other - MPXV5050DP-2
click to zoom

MPXV5050DP Details

  • Manufacturer Part Number:

    MPXV5050DP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    SENSITIVITY 90 MILLI VOLT PER KILO PASCAL, TEMPERATURE COMPENSATED

  • Body Breadth:

    12.06 mm

  • Body Height:

    9.65 mm

  • Body Length or Diameter:

    12.06 mm

  • Linearity (%):

    2.5 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.20V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.20-4.70V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    BARBED

  • Pressure Range-Max:

    7.25 Psi

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPXV5050DP Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPXV5050DP involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the analog-to-digital converter (ADC).
  • Calibration involves applying known pressures to the sensor and measuring the corresponding output voltages. A minimum of two points (e.g., 0 psi and maximum rated pressure) are required for a basic calibration, but more points can improve accuracy.
  • To prevent damage, power should be applied to the VCC pin before the VSS pin. The power-on sequence should be: VCC, then VSS, then input signals (if applicable).
  • To minimize EMI, use a shielded cable for the sensor's output, keep the sensor away from high-frequency sources, and use a low-pass filter (e.g., RC filter) to filter out high-frequency noise.
  • The MPXV5050DP has a maximum pressure rating of 50 psi (3.45 bar). Exceeding this rating can damage the sensor.
