Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signal traces separate to minimize noise and interference. Additionally, it's recommended to use a low-ESR capacitor for decoupling and to place it as close as possible to the device.
To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be placed in a thermally conductive path to the target temperature.
The maximum allowed voltage on the analog input pins of the MPY100CG is the supply voltage (VCC) + 0.3V. Exceeding this voltage can cause damage to the device. It's recommended to use input protection circuits, such as voltage dividers or clamping diodes, to prevent overvoltage conditions.
Yes, the MPY100CG can be used in a ratiometric configuration, where the output voltage is proportional to the ratio of the input voltages. This configuration can provide better accuracy and noise rejection, but it requires careful consideration of the input voltage ranges and the reference voltage.
To troubleshoot common issues with the MPY100CG, start by verifying the power supply voltage, checking for proper PCB layout and routing, and ensuring that the input voltages are within the specified ranges. Use an oscilloscope to measure the output voltage and input signals, and check for noise and distortion. Consult the datasheet and application notes for specific troubleshooting guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPY100CG Overview

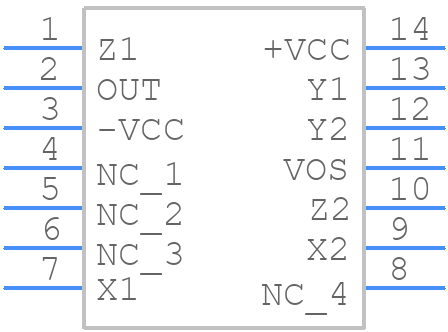

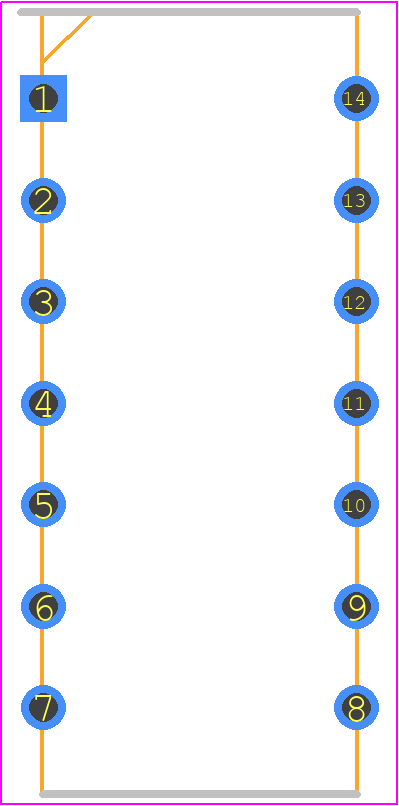

Use the download button to access the MPY100CG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPY10,
or try a keyword search, such as Analog Computational Functions
