MQPI-18LP - VICOR

Description: 28 Volt input, 7 Amp M-Grade EMI Filter Module, 50 Vin max. input, 1.85 W, -55 to 125°C

Download MQPI-18LP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

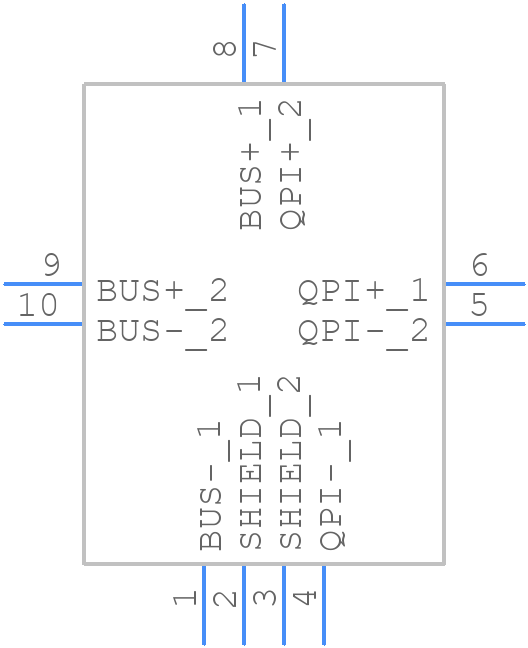

MQPI-18LP - VICOR - PCB symbol
click to zoom
PCB Footprints

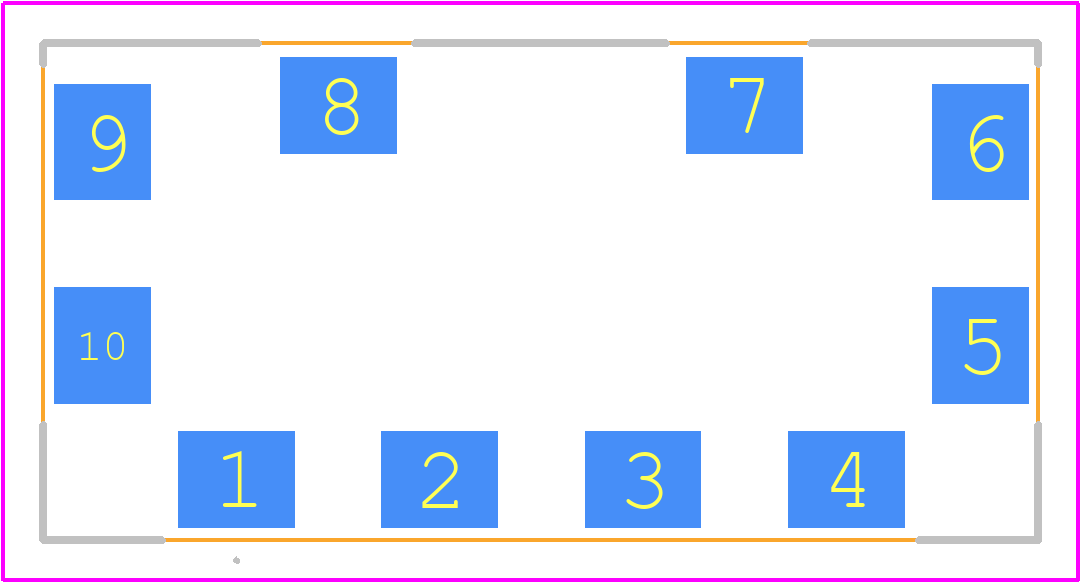

MQPI-18LP - VICOR PCB footprint - Other - Other - LGA-18_2026
click to zoom
3D Models
MQPI-18LP - VICOR - 3D model - Other - LGA-18_2026
click to zoom

MQPI-18LP Details

  • Manufacturer Part Number:

    MQPI-18LP

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    6.2

  • Additional Feature:

    IMPEDANCE 50 OHM AT 1 MHZ IS AVAILLABLE

  • Filter Type:

    DATA LINE FILTER

  • Height:

    4.978 mm

  • Length:

    25.298 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Rated Current:

    7 A

  • Rated Voltage:

    28 V

  • Width:

    12.903 mm

MQPI-18LP Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MQPI-18LP is -40°C to +100°C.
  • Yes, the MQPI-18LP is designed for high-reliability applications and is screened to Vicor's high-reliability standards.
  • The maximum power rating for the MQPI-18LP is 18W.
  • Yes, the MQPI-18LP is compatible with lead-free soldering processes and is RoHS compliant.
  • The typical efficiency of the MQPI-18LP is 85%.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MQPI-18LP Overview

Use the download button to access the MQPI-18LP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MQPI-, or try a keyword search, such as Data Line Filters
