MR061C474KTA - Kyocera AVX

Description: Multilayer Ceramic Capacitor, Ceralam MR Series, 0.47 - F, - 10%, X7R, 100 V, Radial Leaded RoHS Compliant: No

Download MR061C474KTA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MR061C474KTA - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints

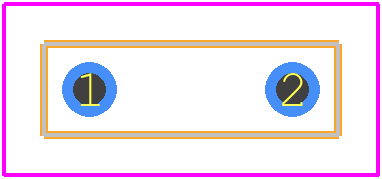

MR061C474KTA - Kyocera AVX PCB footprint - Other - Other - MR061C474KTA-2
click to zoom
3D Models
MR061C474KTA - Kyocera AVX - 3D model - Other - MR061C474KTA-2
click to zoom

MR061C474KTA Details

  • Manufacturer Part Number:

    MR061C474KTA

  • Pbfree Code:

    No

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Not Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.24.00.60

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    4.88

  • Capacitance:

    0.47 µF

  • Capacitor Type:

    CERAMIC CAPACITOR

  • Dielectric Material:

    CERAMIC

  • Height:

    2.28 mm

  • JESD-609 Code:

    e0

  • Length:

    7.36 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Multilayer:

    Yes

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Positive Tolerance:

    10%

  • Rated (DC) Voltage (URdc):

    100 V

  • Surface Mount:

    YES

  • Temperature Characteristics Code:

    X7R

  • Temperature Coefficient:

    15% ppm/°C

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Pitch:

    5.08 mm

  • Terminal Shape:

    WIRE

  • Width:

    7.36 mm

MR061C474KTA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for MR061C474KTA is a peak temperature of 260°C for 10-30 seconds, with a ramp-up rate of 3°C/second and a ramp-down rate of 6°C/second.
  • Yes, the MR061C474KTA capacitor is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6 for vibration testing.
  • Yes, the MR061C474KTA capacitor is designed to operate in humid environments and meets the requirements of IEC 60068-2-78 for humidity testing.
  • The ESR of the MR061C474KTA capacitor is typically around 10-20 milliohms, depending on the frequency of operation.
  • Yes, the MR061C474KTA capacitor is RoHS and REACH compliant, and meets the requirements of the European Union's directives on the restriction of hazardous substances in electrical and electronic equipment.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MR061C474KTA Overview

Use the download button to access the MR061C474KTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MR061, or try a keyword search, such as Ceramic Capacitors

About Kyocera AVX

Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
