MR2A16ACYS35 - Everspin Technologies

Description: NVRAM 4Mb 3.3V 35ns 256Kx16 Prallel MRAM

Download MR2A16ACYS35 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

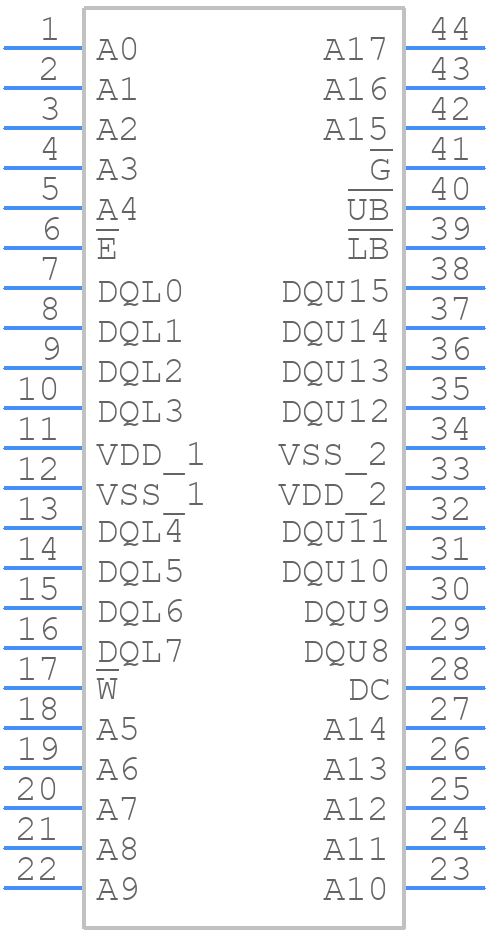

MR2A16ACYS35 - Everspin Technologies - PCB symbol
click to zoom
PCB Footprints

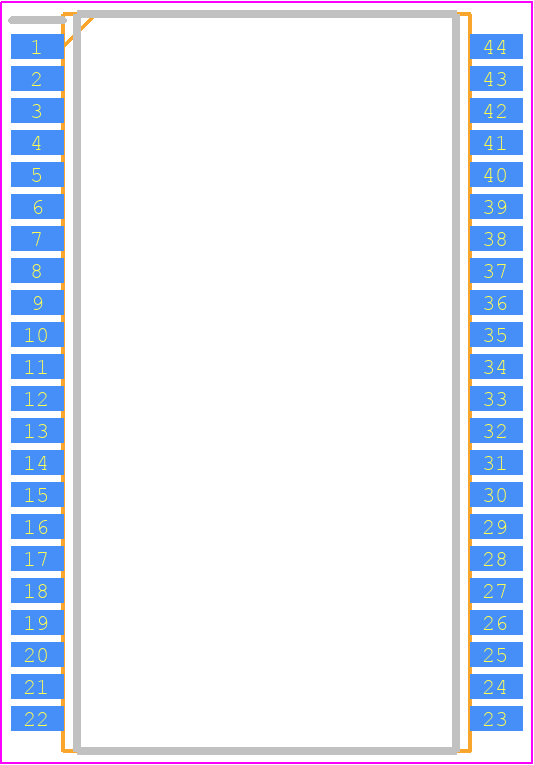

MR2A16ACYS35 - Everspin Technologies PCB footprint - Small Outline Packages - Small Outline Packages - MR2A16ACYS35
click to zoom
3D Models
MR2A16ACYS35 - Everspin Technologies - 3D model - Small Outline Packages - MR2A16ACYS35
click to zoom

MR2A16ACYS35 Details

  • Manufacturer Part Number:

    MR2A16ACYS35

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP2

  • Package Description:

    0.400 INCH, ROHS COMPLIANT, PLASTIC, TSOP2-44

  • Pin Count:

    44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Everspin Technologies

  • Access Time-Max:

    35 ns

  • JESD-30 Code:

    R-PDSO-G44

  • Length:

    18.41 mm

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    MEMORY CIRCUIT

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.028 A

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

MR2A16ACYS35 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MR2A16ACYS35 is -40°C to 125°C.
  • To ensure data integrity, use a voltage supervisor or a power-on reset circuit to ensure that the device is fully powered up before accessing the memory. Also, use a capacitor to filter out power noise and ensure a clean power supply.
  • Use a 4-layer PCB with a solid ground plane, and route the MR2A16ACYS35's signals on the top layer. Keep the signal traces short and away from noise sources. Use a decoupling capacitor (e.g., 0.1uF) close to the device's power pins.
  • The MR2A16ACYS35 has an asynchronous interface, which means that the clock signal is not provided externally. The device uses an internal clock, and the timing requirements are specified in the datasheet. Ensure that your system design meets the specified timing requirements for read and write operations.
  • For radiation-hardened or high-reliability applications, consider using a radiation-hardened version of the MR2A16ACYS35, such as the MR2A16ACYS35RH. Additionally, follow Everspin's guidelines for radiation testing and qualification, and ensure that your system design meets the required radiation tolerance and reliability standards.
