MRF206 - NKK Switches

MRF206 Details

• Manufacturer Part Number:

  MRF206

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  NKK Switches

• YTEOL:

  6

• Actuator Length:

  0.039 inch

• Actuator Material:

  BRASS

• Actuator Type:

  ROTARY SHAFT

• Body Height:

  11.7094 mm

• Body Length or Diameter:

  13.9954 mm

• Center Contact Material:

  PHOSPHOR BRONZE

• Center Contact Plating:

  GOLD

• Contact (DC) Max Power Rating R Load:

  0.4VA@28VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.05 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Dielectric Withstand Volts:

  500VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  GOLD

• Housing Material:

  ZINC ALLOY

• Indexing Angle:

  15 deg

• Insulation Resistance:

  100000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Positions:

  6

• Operating Temperature-Max:

  70 °C

• Operating Temperature-Min:

  -10 °C

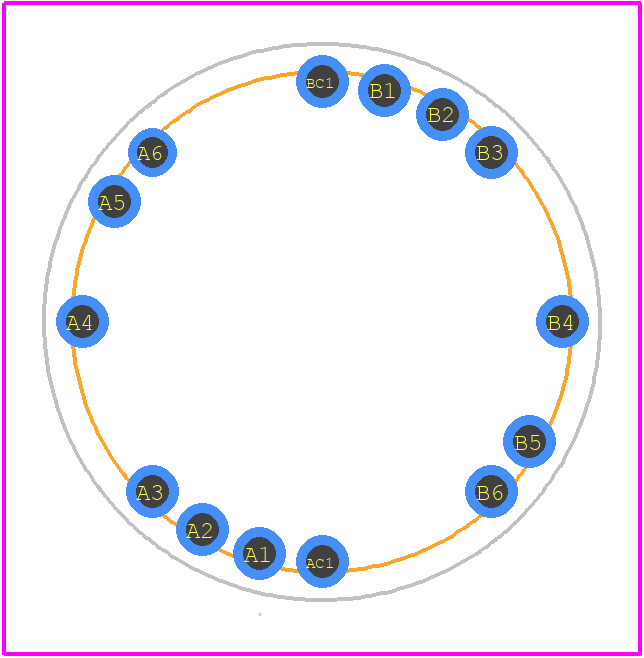

• PCB Hole Count:

  14

• Solderability:

  WAVE

• Surface Mount:

  NO

• Switch Action:

  CIRCULAR

• Switch Function:

  DP6T

• Switch Type:

  ROTARY SWITCH

• Terminal Length:

  0.138 inch

• Terminal Material:

  PHOSPHOR BRONZE

• Termination Type:

  SOLDER
