MRF89XAT-I/MQ - Microchip

Description: RF Transceiver 868/915/950 MHz Sub-GHz transceiver

Download MRF89XAT-I/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

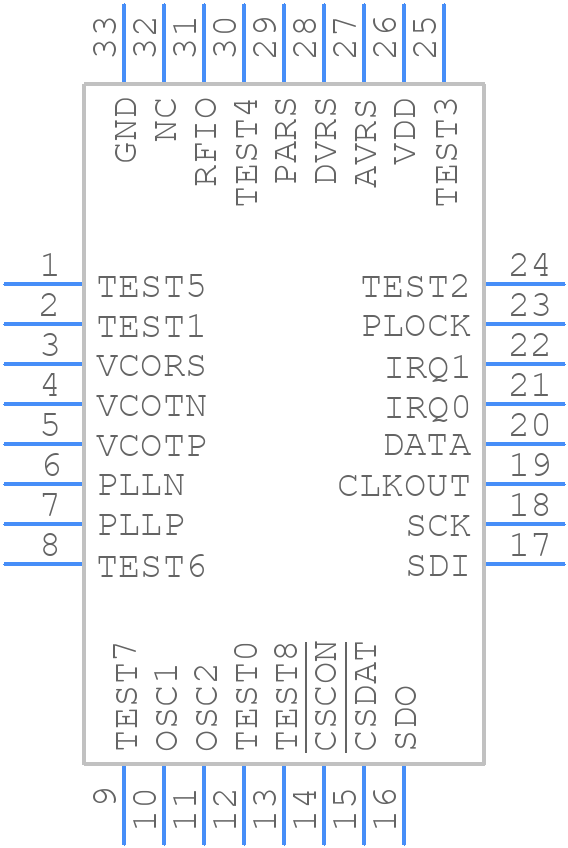

MRF89XAT-I/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MRF89XAT-I/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin QFN
click to zoom
3D Models
MRF89XAT-I/MQ - Microchip - 3D model - Quad Flat No-Lead - 32-Pin QFN
click to zoom

MRF89XAT-I/MQ Details

  • Manufacturer Part Number:

    MRF89XAT-I/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Manufacturer Package Code:

    QFN-32

  • Country Of Origin:

    Malaysia, Taiwan

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    RF TRANSCEIVER

  • Terminal Finish:

    Matte Tin (Sn)

MRF89XAT-I/MQ Frequently Asked Questions (FAQs)

  • The maximum transmit power of the MRF89XAT-I/MQ module is +20 dBm (100 mW) for the 868 MHz and 915 MHz frequency bands.
  • The MRF89XAT-I/MQ module can be configured for different frequency bands by setting the appropriate register values using the SPI interface. Refer to the datasheet for specific register settings for each frequency band.
  • The range of the MRF89XAT-I/MQ module depends on various factors such as the environment, antenna gain, and transmit power. However, in ideal conditions, the module can achieve a range of up to 10 km (6.2 miles) in open space.
  • The MRF89XAT-I/MQ module supports AES-128 encryption and other security features through the Microchip CryptoAuthentication library. Refer to the Microchip documentation for implementation details.
  • The power consumption of the MRF89XAT-I/MQ module varies depending on the operating mode. In transmit mode, the module consumes around 120 mA, while in receive mode, it consumes around 20 mA. In sleep mode, the module consumes around 1 μA.
