Part Image

MRJE2604 - TE Connectivity

Description: 6 Position, Long Thin Knob, Rotary, 6 Switch, Epoxy, .4 A Contact Rating, 20 VDC, 20 VAC, Straight, Gold Contact Plating, Brass, Rotary Switches

Download MRJE2604 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

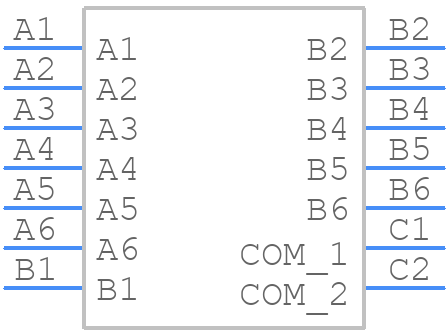

Symbol
MRJE2604 - TE Connectivity - PCB symbol
click to zoom

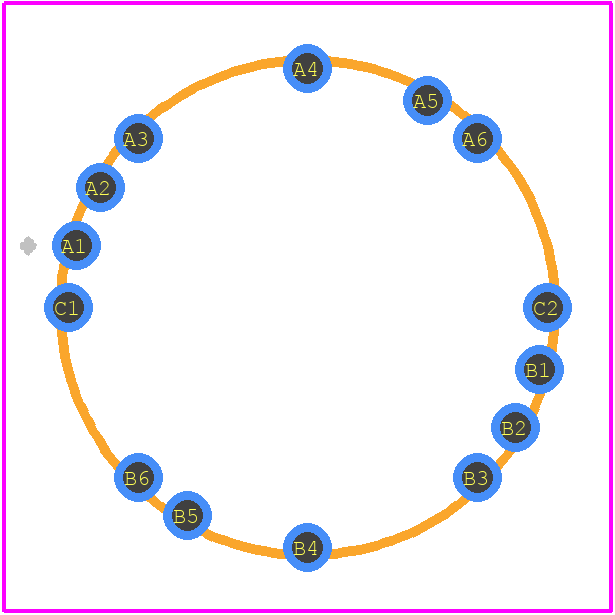

PCB Footprints
MRJE2604 - TE Connectivity PCB footprint - Other - Other - MRJE2604
click to zoom
3D Models
MRJE2604 - TE Connectivity - 3D model - Other - MRJE2604
click to zoom

MRJE2604 Details

  • Manufacturer Part Number:

    MRJE2604

  • Brand Name:

    Alcoswitch

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.20

  • Factory Lead Time:

    32 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6

  • Actuator Type:

    LONG THIN KNOB

  • Center Contact Plating:

    GOLD OVER NICKEL

  • Contact Current(AC)-Max:

    0.4 A

  • Contact Current(DC)-Max:

    0.4 A

  • Contact Voltage(AC)-Max:

    20 V

  • Contact Voltage(DC)-Max:

    20 V

  • End Contact Material:

    BRASS

  • End Contact Plating:

    GOLD OVER NICKEL

  • Housing Material:

    PLASTIC

  • Indexing Angle:

    30 deg

  • JESD-609 Code:

    e4

  • Mounting Feature:

    PANEL MOUNT

  • Number of Positions:

    6

  • Number of Switch Sections:

    6

  • Packing Method:

    BOX

  • Sealing:

    SPLASHPROOF

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DP6T

  • Switch Type:

    ROTARY SWITCH

  • Terminal Finish:

    Gold (Au)

  • Termination Type:

    SOLDER AND WIRE

MRJE2604 Frequently Asked Questions (FAQs)

  • The recommended torque value for the MRJE2604 connector is 0.5 Nm to 1.5 Nm (4.4 in-lbs to 13.3 in-lbs) for the screw locks, and 0.2 Nm to 0.5 Nm (1.8 in-lbs to 4.4 in-lbs) for the jack screws.
  • Yes, the MRJE2604 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) in the frequency range of 2 Hz to 2000 Hz.
  • Yes, the MRJE2604 connector is designed to operate in harsh environments. It has an operating temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH at 40°C (104°F). However, it's recommended to consult the datasheet and TE Connectivity's application notes for specific guidance on using the connector in extreme environments.
  • The MRJE2604 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the MRJE2604 connector is part of the Modular RJ (MRJ) connector family from TE Connectivity, which offers a range of connectors with similar footprints and mating interfaces. This allows for easy integration and compatibility with other MRJ connectors in the same family.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MRJE2604 Overview

Use the download button to access the MRJE2604 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MRJE2, or try a keyword search, such as Rotary Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
