MS51XB9AE - Nuvoton

Description: 8051 NuMicro MS51 Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 20-QFN (3x3)

Download MS51XB9AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

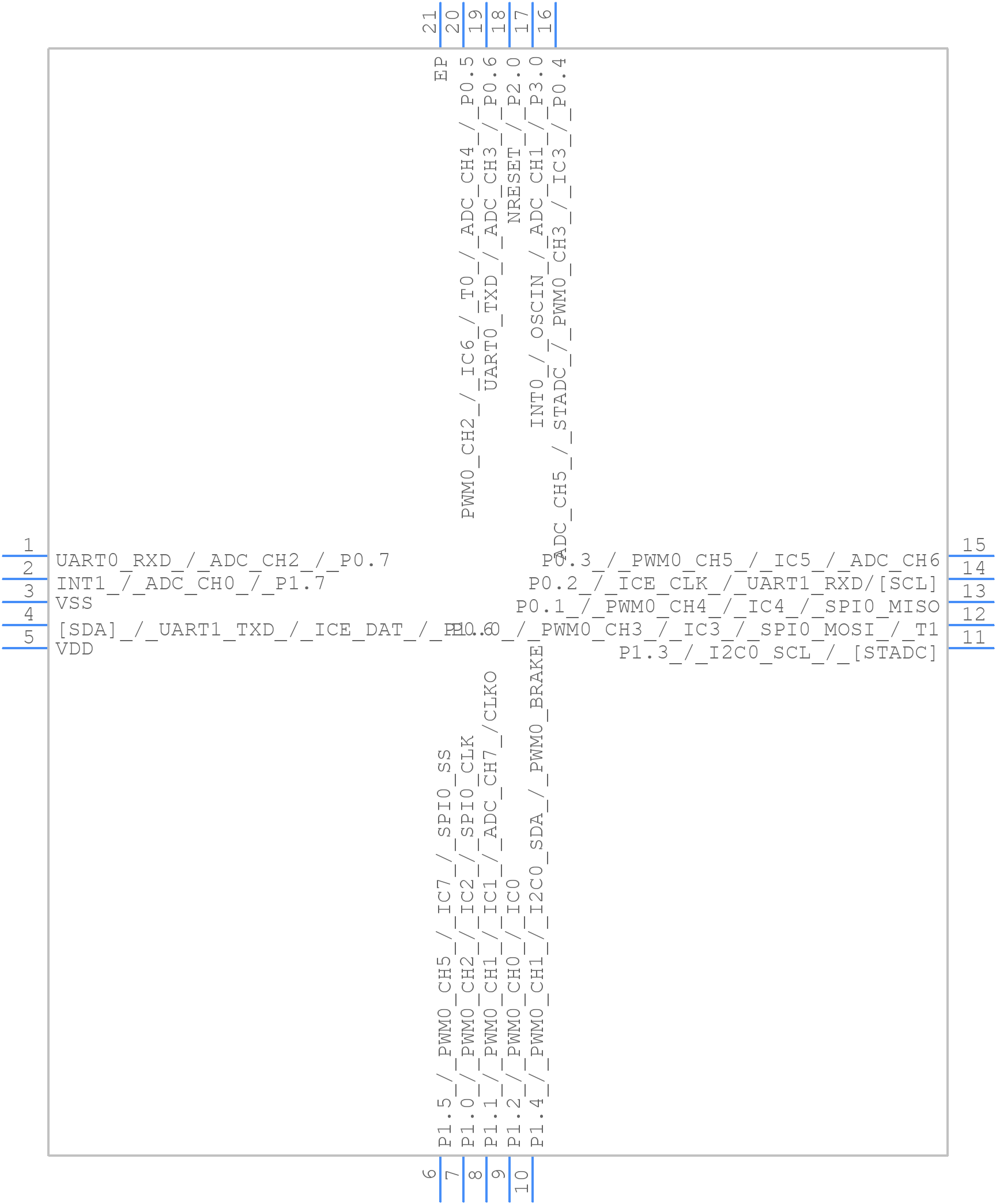

MS51XB9AE - Nuvoton - PCB symbol
click to zoom
PCB Footprints
MS51XB9AE - Nuvoton PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN 20-pin ( 3.0 x 3.0 x 0.8 mm )
click to zoom
3D Models
MS51XB9AE - Nuvoton - 3D model - Quad Flat No-Lead - QFN 20-pin ( 3.0 x 3.0 x 0.8 mm )
click to zoom

MS51XB9AE Details

  • Manufacturer Part Number:

    MS51XB9AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    8

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MS51XB9AE Frequently Asked Questions (FAQs)

  • The MS51XB9AE can operate in a temperature range of -40°C to 85°C.
  • The clock source for the MS51XB9AE can be configured using the Clock Control Register (CLKCTL). The clock source can be set to either the internal RC oscillator, external crystal oscillator, or external clock source.
  • The maximum frequency for the UART module in the MS51XB9AE is 3 Mbps.
  • The MS51XB9AE has a built-in watchdog timer that can be enabled and configured using the Watchdog Timer Control Register (WDTCR). The watchdog timer can be set to reset the device if it does not receive a reset signal within a specified time period.
  • The maximum current consumption of the MS51XB9AE is 15 mA at 5V and 10 MHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS51XB9AE Overview

Use the download button to access the MS51XB9AE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS51X, or try a keyword search, such as Microcontrollers
