MS860702BA01-50 - TE Connectivity

Description: Dimensions: Dimensions .19 x .11 x .04 INCH | Dimensions 5 x 3 x 1 MM | Electrical Characteristics: Board Level Pressure Sensor Supply Voltage 1.5 – 3.6 V | Operation/Application: Output/Span 24 bit ADC | Board Level Pressure Sensor Accuracy ±4mbar | Resolution .016 | Other: Sensor Options No Option | Packaging Features: Board Level Pressure Sensor Package Surface Mountable | Product Type Features: Board Level Pressure Sensor Type Digital Pressure and Altimeter Sensor Modules | Board Level Pressure Senso

Download MS860702BA01-50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

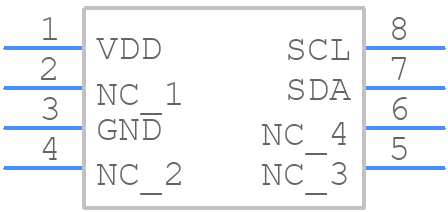

MS860702BA01-50 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
MS860702BA01-50 - TE Connectivity PCB footprint - Small Outline No-lead - Small Outline No-lead - MS860702BA01
click to zoom
3D Models
MS860702BA01-50 - TE Connectivity - 3D model - Small Outline No-lead - MS860702BA01
click to zoom

MS860702BA01-50 Details

  • Manufacturer Part Number:

    MS860702BA01-50

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • Manufacturer:

    TE Connectivity

  • Accuracy-Max (%):

    4%

  • Body Breadth:

    3 mm

  • Body Height:

    1 mm

  • Body Length or Diameter:

    5 mm

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Sensors/Transducers Type:

    SENSOR MODULE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MS860702BA01-50 Overview

Use the download button to access the MS860702BA01-50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MS860, or try a keyword search, such as Other Signal Circuits
