MSAS-04PMMP-SF8001 - Amphenol

Description: 4 Position Circular Connector Receptacle, Male Pins Solder

Download MSAS-04PMMP-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MSAS-04PMMP-SF8001 - Amphenol - PCB symbol
click to zoom

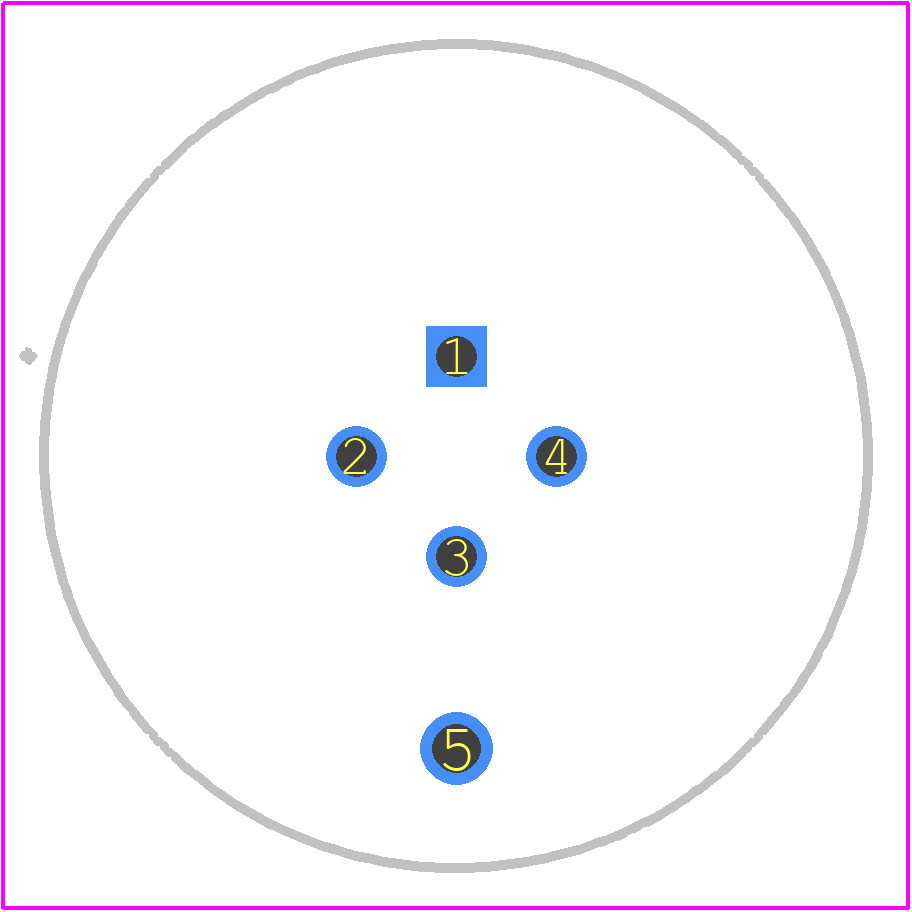

PCB Footprints
MSAS-04PMMP-SF8001 - Amphenol PCB footprint - Other - Other - MSAS-04PMMP-SF8001
click to zoom
3D Models
MSAS-04PMMP-SF8001 - Amphenol - 3D model - Other - MSAS-04PMMP-SF8001
click to zoom

MSAS-04PMMP-SF8001 Details

  • Manufacturer Part Number:

    MSAS-04PMMP-SF8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(SIGNAL): 4A; RATED VOLTAGE: 250VAC/VDC

  • Backshell Type:

    SOLID

  • Body Depth:

    0.827 inch

  • Body Diameter:

    0.606 inch

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Gender:

    MALE

  • Coupling Type:

    THREADED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    WATERPROOF

  • Shell Finish:

    NICKEL

  • Shell Material:

    ZINC ALLOY

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

MSAS-04PMMP-SF8001 Frequently Asked Questions (FAQs)

  • The operating temperature range of the MSAS-04PMMP-SF8001 is -65°C to 150°C, making it suitable for high-reliability applications.
  • Yes, the MSAS-04PMMP-SF8001 is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10 G peak acceleration.
  • The MSAS-04PMMP-SF8001 has a mating cycle life of 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
  • Yes, the MSAS-04PMMP-SF8001 is designed for PCB mounting, with a through-hole mounting style and a PCB layout compatible with standard PCB manufacturing processes.
  • The typical insertion force required for the MSAS-04PMMP-SF8001 connector is 10-20 N (2.2-4.4 lbf), making it easy to mate and unmate.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSAS-04PMMP-SF8001 Overview

Use the download button to access the MSAS-04PMMP-SF8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSAS-, or try a keyword search, such as Other Circular Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
