Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the decoupling capacitors are placed close to the device.
The MSC1202Y2RHHT has a built-in POR and BOR. To handle these, ensure a stable power supply, use a suitable power-on reset circuit, and consider adding a voltage supervisor to monitor the power supply. Also, ensure the device is properly reset during power-up and power-down sequences.
The MSC1202Y2RHHT can use an internal or external clock source. For optimal performance, use a high-quality external clock source, such as a crystal oscillator, and follow the recommended clock configuration in the datasheet. Ensure the clock frequency is within the specified range and the clock signal is clean and stable.
To optimize power consumption, use the device's power-down modes, such as the shutdown mode, and adjust the clock frequency according to your application's requirements. Additionally, consider using a low-power oscillator, reducing the voltage supply, and minimizing the number of active circuits.
To minimize EMI and ensure EMC, follow good PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding. Ensure the device is properly decoupled, and consider using EMI filters or shielding on the PCB. Also, follow the recommended layout and routing guidelines in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSC1202Y2RHHT Overview

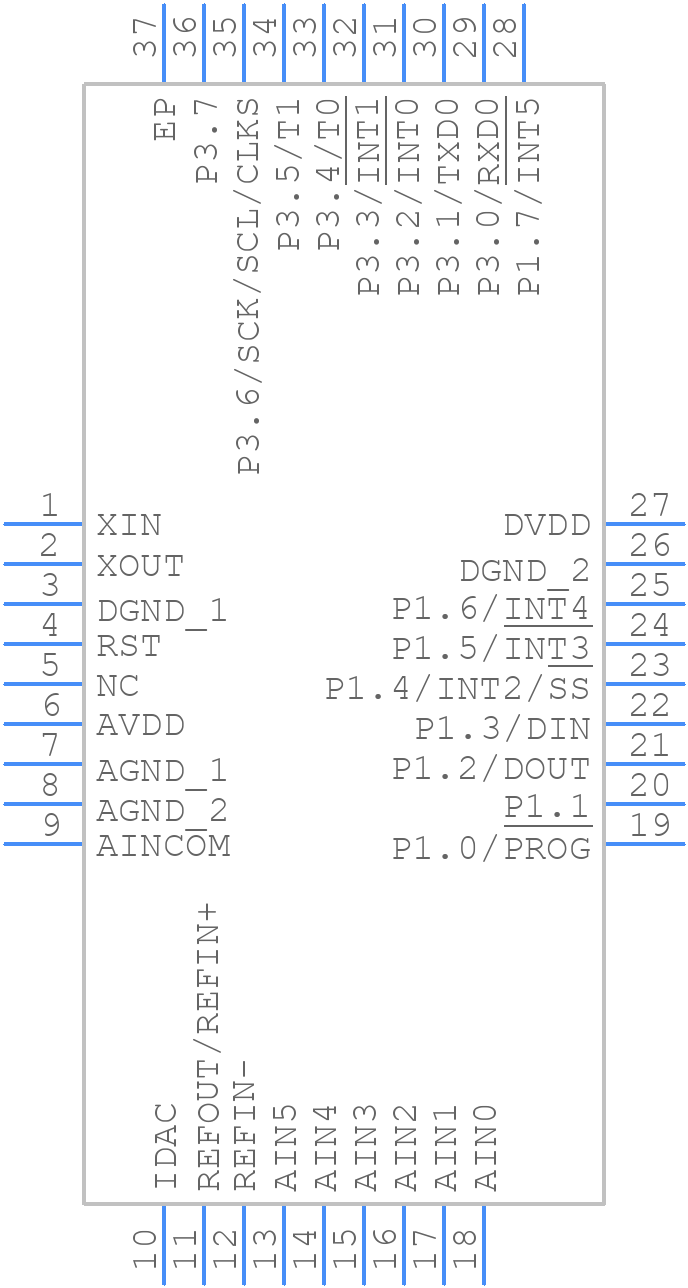

Use the download button to access the MSC1202Y2RHHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSC12,
or try a keyword search, such as Microcontrollers
