MSDWI03-24S24 - Minmax

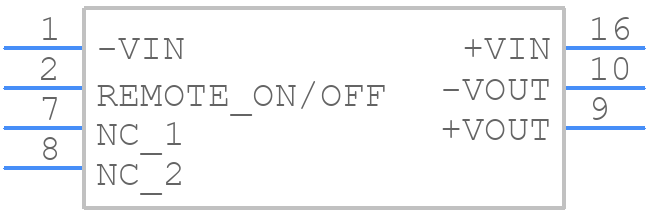

MSDWI03-24S24 Details

• Manufacturer Part Number:

  MSDWI03-24S24

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SMD-16/7

• ECCN Code:

  EAR99

• Manufacturer:

  Minmax Technology Co Ltd

• YTEOL:

  6

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  C-UL-US, CB, CE, CUL, EN, IEC, UL

• Efficiency (Main Output):

  80%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PDMA-G7

• Length:

  24 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  1.2%

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.125 A

• Output Voltage-Max:

  24.48 V

• Output Voltage-Min:

  23.52 V

• Output Voltage-Nom:

  24 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,7/16LEAD,.71

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER CURRENT, OVER LOAD, SHORT CIRCUIT, UNDER VOLTAGE

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Screening Level:

  EN/IEC/UL 62368-1

• Seated Height-Max:

  8.3 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  GULL WING

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  13.7 mm
