MSGWI06-24S05 - Minmax

Description: The MSGWI06 series is a range of isolated 6W DC-DC converter modules featuring fully regulated output voltages and ultra-wide 4:1 input voltage ranges. These products are with a very small footprint occupying just 0.7 square in.on PCB. All models are qualified for lead free reflow solder processes according IPC J-STD-020D.1.

Download MSGWI06-24S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

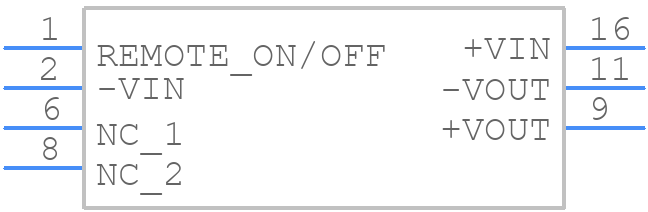

MSGWI06-24S05 - Minmax - PCB symbol
click to zoom
PCB Footprints

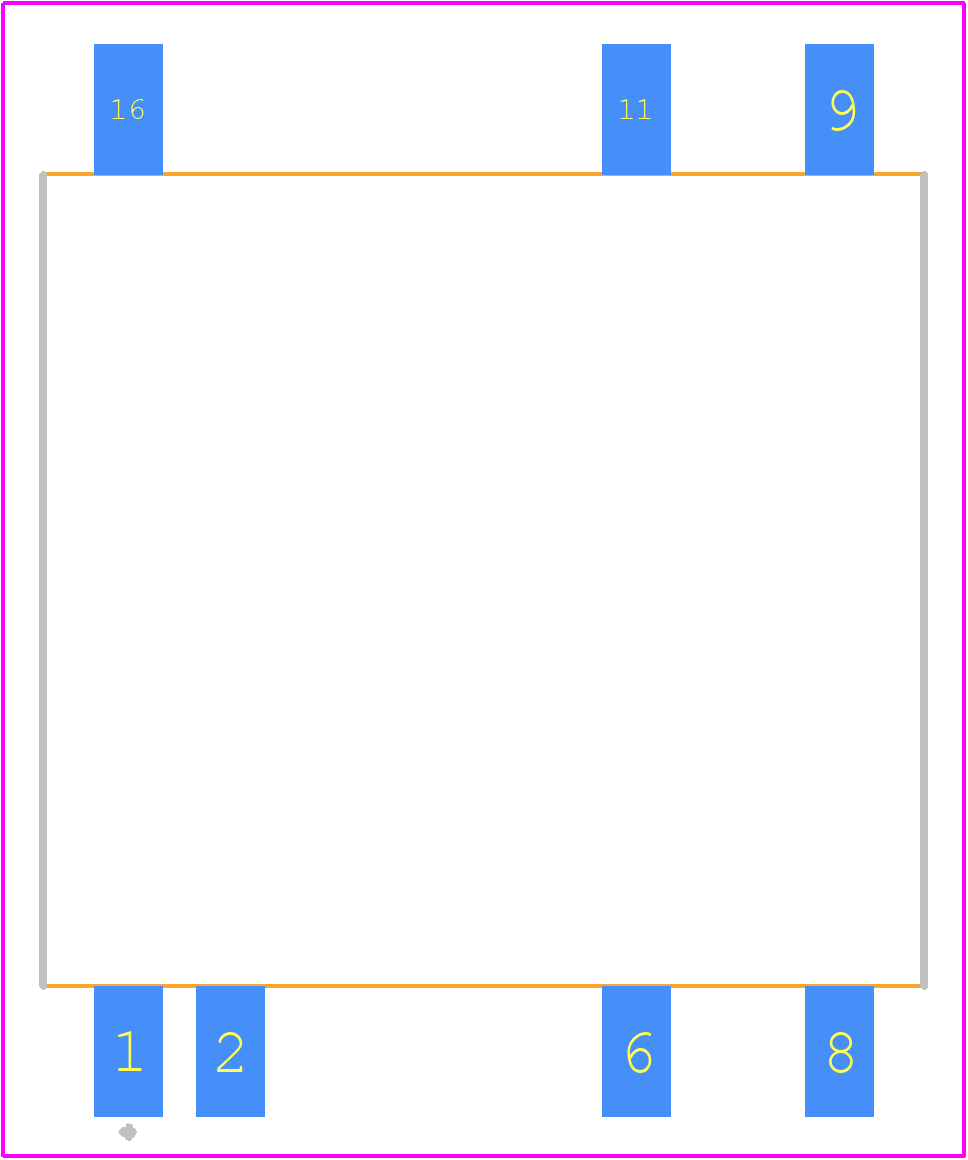

MSGWI06-24S05 - Minmax PCB footprint - Other - Other - SMD_126891116
click to zoom
3D Models
MSGWI06-24S05 - Minmax - 3D model - Other - SMD_126891116
click to zoom

MSGWI06-24S05 Details

  • Manufacturer Part Number:

    MSGWI06-24S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Minmax Technology Co Ltd

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Moisture Sensitivity Level:

    2

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSGWI06-24S05 Overview

Use the download button to access the MSGWI06-24S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSGWI, or try a keyword search, such as Power Supply Modules
