MSM82C55A-2VJS - OKI

MSM82C55A-2VJS Details

• Manufacturer Part Number:

  MSM82C55A-2VJS

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFJ

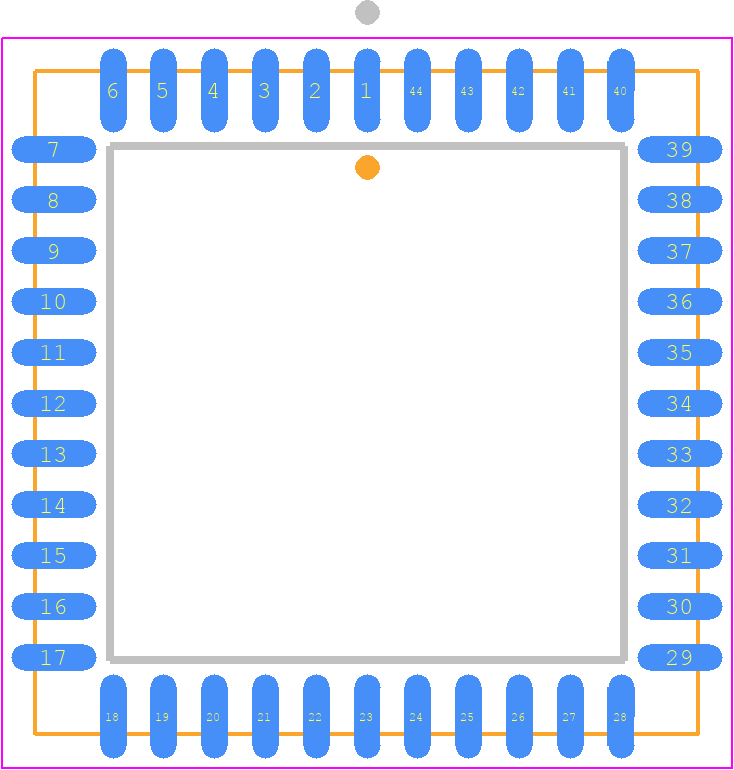

• Package Description:

  0.650 INCH, 1.27 MM PITCH, PLASTIC, QFJ-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  OKI Electric Industry Co Ltd

• YTEOL:

  0

• Clock Frequency-Max:

  8 MHz

• External Data Bus Width:

  8

• JESD-30 Code:

  S-PQCC-J44

• Length:

  16.5862 mm

• Number of I/O Lines:

  24

• Number of Ports:

  3

• Number of Terminals:

  44

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Supply Current-Max:

  8 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Width:

  16.5862 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
