Part Image

MSP430F1232IDWR - Texas Instruments

Description: 16-bit Ultra-Low-Power Microcontroller, 8kB Flash, 256B RAM, 10 bit ADC, 1 USART

Download MSP430F1232IDWR Model

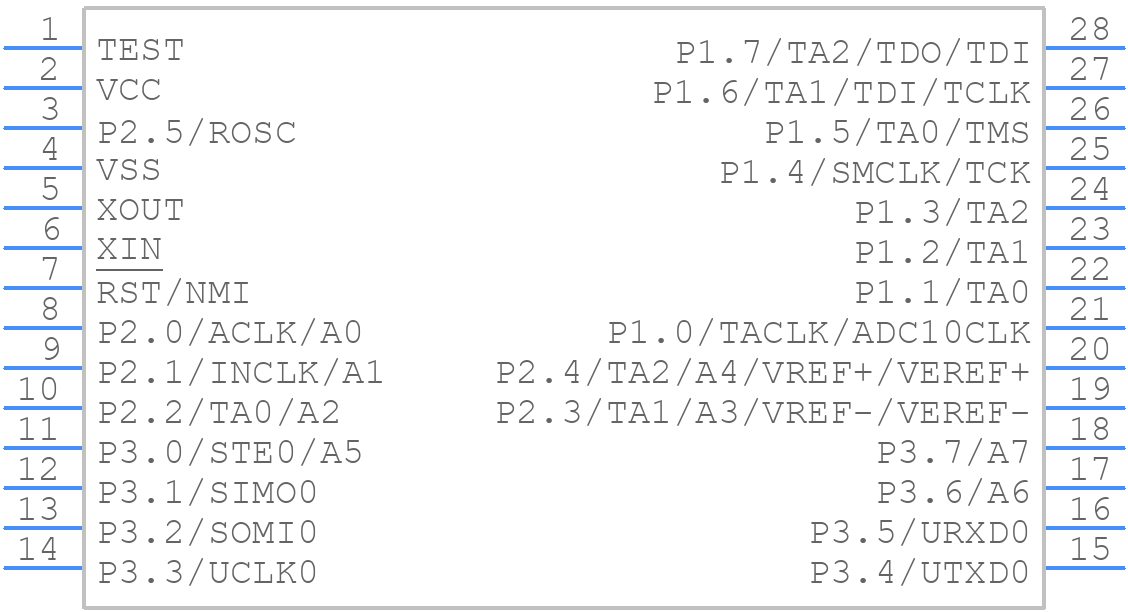

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MSP430F1232IDWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
MSP430F1232IDWR - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

MSP430F1232IDWR Details

  • Manufacturer Part Number:

    MSP430F1232IDWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    GREEN, PLASTIC, SO-28

  • Pin Count:

    28

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.15MHZ

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    8 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    22

  • Number of Terminals:

    28

  • Number of Timers:

    3

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • RAM (words):

    0.25

  • ROM (words):

    8192

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.65 mm

  • Speed:

    8 MHz

  • Supply Current-Max:

    0.35 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSP430F1232IDWR Overview

Use the download button to access the MSP430F1232IDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43, or try a keyword search, such as Microcontrollers

Parts related to MSP430F1232IDWR

Showing 0 results

MSP430F1232IDWR Alternates

Showing results

Image Part Number Model
Part Image MSP430F1232IDW Texas Instruments

8 MHz MCU with 8KB Flash, 256B SRAM, timer, 10-bit ADC, SPI/UART 28-SOIC -40 to 85

Part Image MSP430F1232IDW Rochester Electronics LLC

16-BIT, FLASH, 8MHz, RISC MICROCONTROLLER, PDSO28, GREEN, PLASTIC, SO-28

Part Image MSP430F1232IDWR Rochester Electronics LLC

16-BIT, FLASH, 8MHz, RISC MICROCONTROLLER, PDSO28, GREEN, PLASTIC, SO-28
