The maximum clock frequency that can be used with the MSP430F2121TPWR is 16 MHz, which is the maximum frequency of the internal digitally controlled oscillator (DCO). However, the device can also be clocked using an external clock source, in which case the maximum frequency depends on the specific clock source used.
To configure the MSP430F2121TPWR for low-power operation, you can use the Power Management Module (PMM) to control the power modes of the device. The PMM allows you to select from several power modes, including Active Mode, Low Power Mode 0 (LPM0), Low Power Mode 1 (LPM1), Low Power Mode 2 (LPM2), Low Power Mode 3 (LPM3), and Low Power Mode 4 (LPM4). Each power mode has a different level of power consumption, and you can select the mode that best suits your application's requirements.
Yes, the MSP430F2121TPWR can be used with a 3.3V power supply. The device has a wide operating voltage range of 1.8V to 3.6V, making it suitable for use with a variety of power supplies. However, it's important to note that the device's performance and power consumption may vary depending on the operating voltage.
The MSP430F2121TPWR can be programmed using a variety of tools and interfaces, including the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE), the IAR Embedded Workbench, and the Keil µVision IDE. The device can be programmed using a JTAG or Spy-Bi-Wire interface, and it also supports in-system programming (ISP) and in-application programming (IAP).
The MSP430F2121TPWR has 4KB of flash memory, which can be used to store program code and data. The device also has 256B of RAM, which can be used for data storage and program execution.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430F2121TPWR Overview

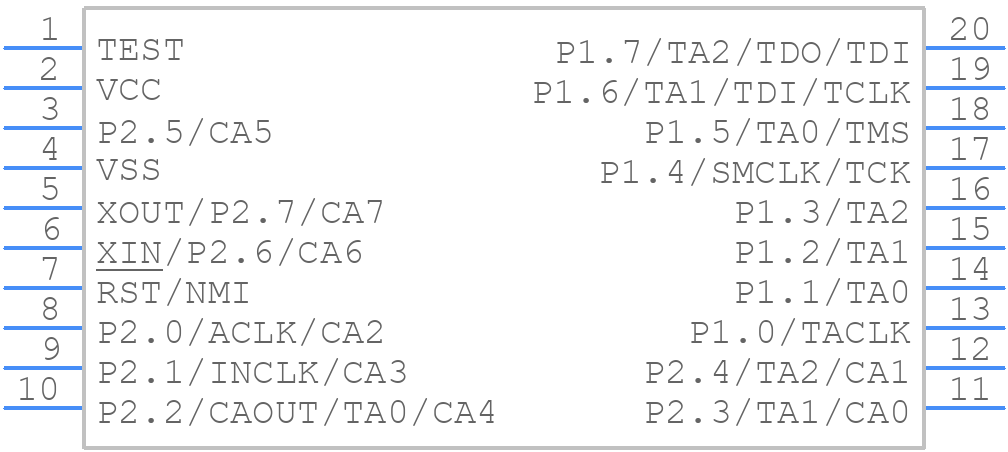

Use the download button to access the MSP430F2121TPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
