The maximum clock frequency that can be used with the MSP430F2131TPWR is 16 MHz, which is the maximum frequency of the internal digitally controlled oscillator (DCO). However, the device can also be clocked using an external clock source, in which case the maximum frequency depends on the specific clock source used.
To configure the MSP430F2131TPWR for low-power operation, you can use the Power Management Module (PMM) to control the power modes of the device. The PMM allows you to select from several power modes, including Active Mode, Low Power Mode 0 (LPM0), Low Power Mode 1 (LPM1), Low Power Mode 2 (LPM2), Low Power Mode 3 (LPM3), and Low Power Mode 4 (LPM4). Each power mode has a different level of power consumption, and you can select the mode that best suits your application's requirements.
Yes, the MSP430F2131TPWR can be used with a 3.3V power supply. The device has a wide operating voltage range of 1.8V to 3.6V, making it suitable for use with a variety of power supplies. However, it's important to ensure that the power supply is stable and within the recommended operating range to ensure reliable operation of the device.
The MSP430F2131TPWR can be programmed using a variety of tools and methods, including the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE), the IAR Embedded Workbench, and the MSP430 Flash Emulation Tool (FET). You can also use a JTAG or Spy-Bi-Wire interface to program the device.
The MSP430F2131TPWR has 8KB of flash memory, which can be used to store program code and data. The device also has 256B of RAM, which can be used for data storage and program execution.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430F2131TPWR Overview

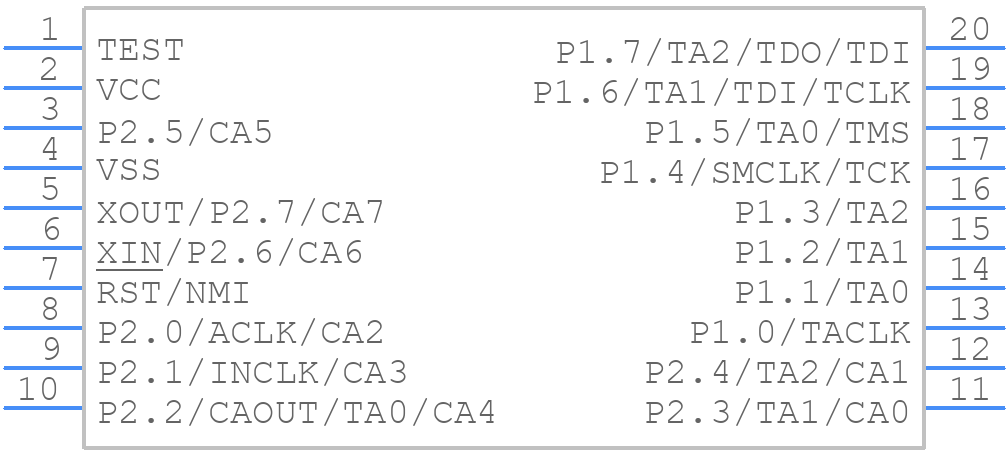

Use the download button to access the MSP430F2131TPWR schematic symbol, PCB footprint, and 3D model.
