Part Image

MSP430F2274IRHAR - Texas Instruments

Description: 16-bit Ultra-Low-Power Microcontroller, 32KB Flash, 1K RAM

Download MSP430F2274IRHAR Model

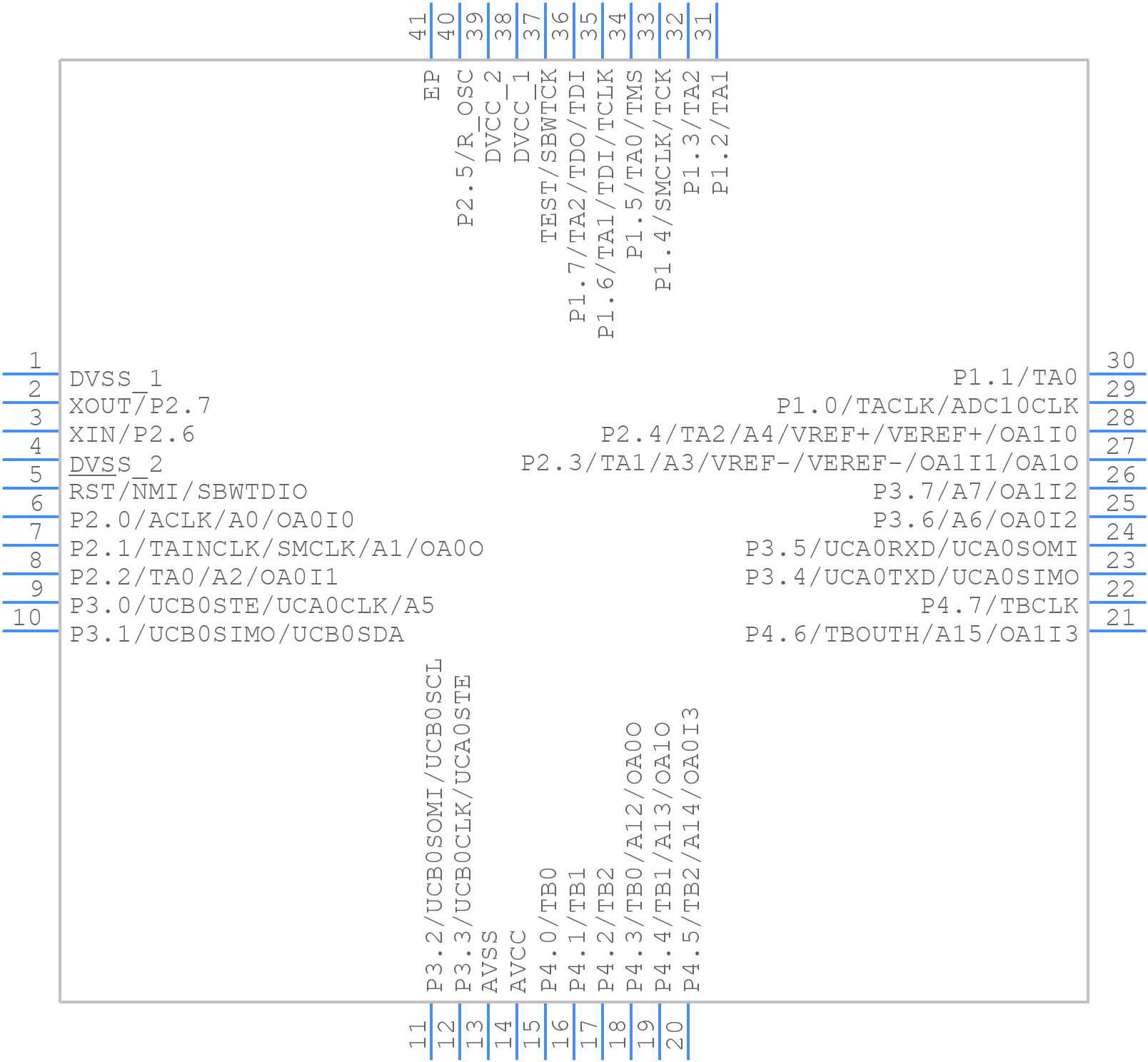

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MSP430F2274IRHAR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHA0040B_2021
click to zoom
3D Models
MSP430F2274IRHAR - Texas Instruments  - 3D model - Quad Flat No-Lead - RHA0040B_2021
click to zoom

MSP430F2274IRHAR Details

  • Manufacturer Part Number:

    MSP430F2274IRHAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    GREEN, PLASTIC, MO-220VJJD-2, VQFN-40

  • Pin Count:

    40

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Additional Feature:

    ALSO OPERATES AT 1.8 V MINIMUM SUPPLY AT 4.15 MHZ

  • Bit Size:

    16

  • Boundary Scan:

    YES

  • CPU Family:

    MSP430

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    32

  • Number of Serial I/Os:

    2

  • Number of Terminals:

    40

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    1024

  • RAM (words):

    1

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    16 MHz

  • Supply Current-Max:

    0.55 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MSP430F2274IRHAR Overview

Use the download button to access the MSP430F2274IRHAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43, or try a keyword search, such as Microcontrollers

Parts related to MSP430F2274IRHAR

Showing 0 results

MSP430F2274IRHAR Alternates

Showing results

Image Part Number Model
Part Image MSP430F2274TRHAT Texas Instruments

16 MHz MCU with 32KB Flash, 1KB SRAM, 10-bit ADC, 2 OpAmp, I2C/SPI/UART 40-VQFN -40 to 105

Part Image MSP430F2274TRHAR Texas Instruments

16 MHz MCU with 32KB Flash, 1KB SRAM, 10-bit ADC, 2 OpAmp, I2C/SPI/UART 40-VQFN -40 to 105

Part Image V62/08631-01XE Texas Instruments

16-bit ultra-low-power microcontroller, 32kB Flash, 1K RAM 40-VQFN -55 to 125

Part Image MSP430F2274TRHATQ1 Texas Instruments

IC RISC MICROCONTROLLER, Microcontroller

Part Image MSP430F2274MRHAEP Texas Instruments

16-BIT, FLASH, 16MHz, RISC MICROCONTROLLER, PQCC40, GREEN, PLASTIC, MO-220VJJD-2, VQFN-40

For a full list of alternate parts for MSP430F2274IRHAR, check out Findchips.com
