The maximum operating temperature range for the MSP430FR2032IG48 is -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate within the industrial temperature range of -40°C to 70°C for optimal performance and reliability.
To configure the MSP430FR2032IG48 for low-power operation, you can use the Power Management Module (PMM) to select the desired power mode (e.g., LPM3, LPM4, etc.). You can also use the FRAM controller to reduce power consumption by limiting the number of accesses to the FRAM. Additionally, you can use the clock system to reduce the clock frequency and disable unused peripherals.
The maximum clock frequency for the MSP430FR2032IG48 is 16 MHz, which can be achieved using an external crystal oscillator or an internal digitally controlled oscillator (DCO). However, the maximum clock frequency may vary depending on the specific application and operating conditions.
The MSP430FR2032IG48 can be programmed using the Texas Instruments Code Composer Studio (CCS) integrated development environment (IDE) or the IAR Embedded Workbench. You can also use the MSP430 Flasher tool or the MSP430FR2xx USB Debug Interface to program the device.
The MSP430FR2032IG48 has 16 KB of FRAM, which can be used for data storage. However, it's recommended to reserve some FRAM for the stack and heap, and to use the remaining FRAM for data storage. The exact amount of FRAM available for data storage will depend on the specific application and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MSP430FR2032IG48 Overview

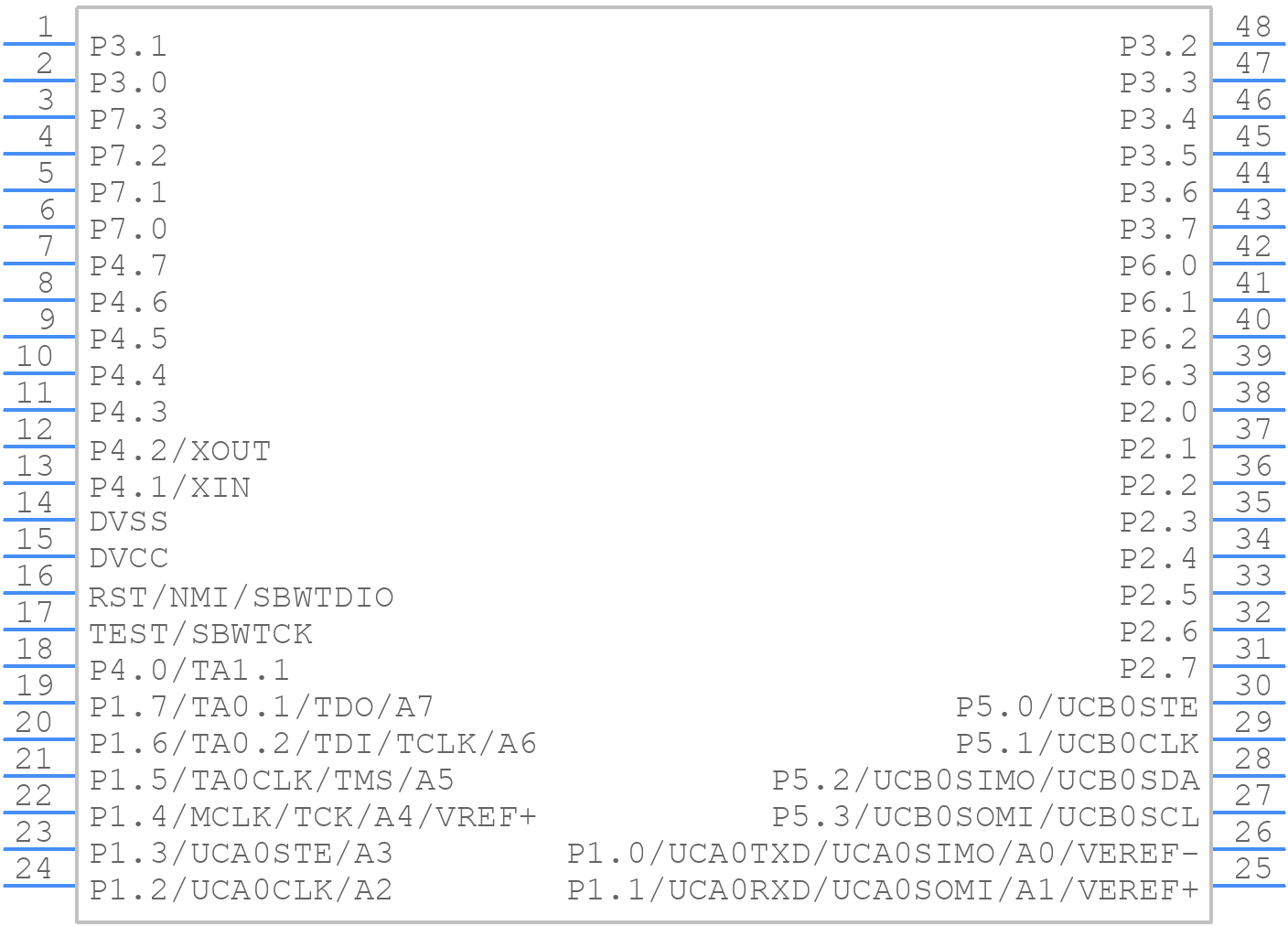

Use the download button to access the MSP430FR2032IG48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MSP43,
or try a keyword search, such as Microcontrollers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
